Reverse tuck end carton
Reverse tuck end (RTE). The tuck flaps close on opposite sides: cosmetics, pharmaceuticals, supplements.
Dieline shown at 80 × 50 × 150 mm (inside). Enter your own dimensions in the editor.
Box styles.
Know your product’s dimensions? Find my template →
Choose a box style, set its dimensions and see the dieline. Every style is built to the FEFCO or ECMA standard or from reference dielines, and shown in our own 3D renderings.
Tuck end cartons
Paperboard · ECMA standard
Straight tuck end carton
Straight tuck end (STE). Both tuck flaps on the same side, for an uninterrupted front panel.
Dieline shown at 80 × 50 × 150 mm (inside). Enter your own dimensions in the editor.
Face cream carton
Reverse tuck end proportioned for a cream jar (square base, height close to the side length). Based on two reference dielines.
Dieline shown at 80 × 80 × 70 mm (inside). Enter your own dimensions in the editor.

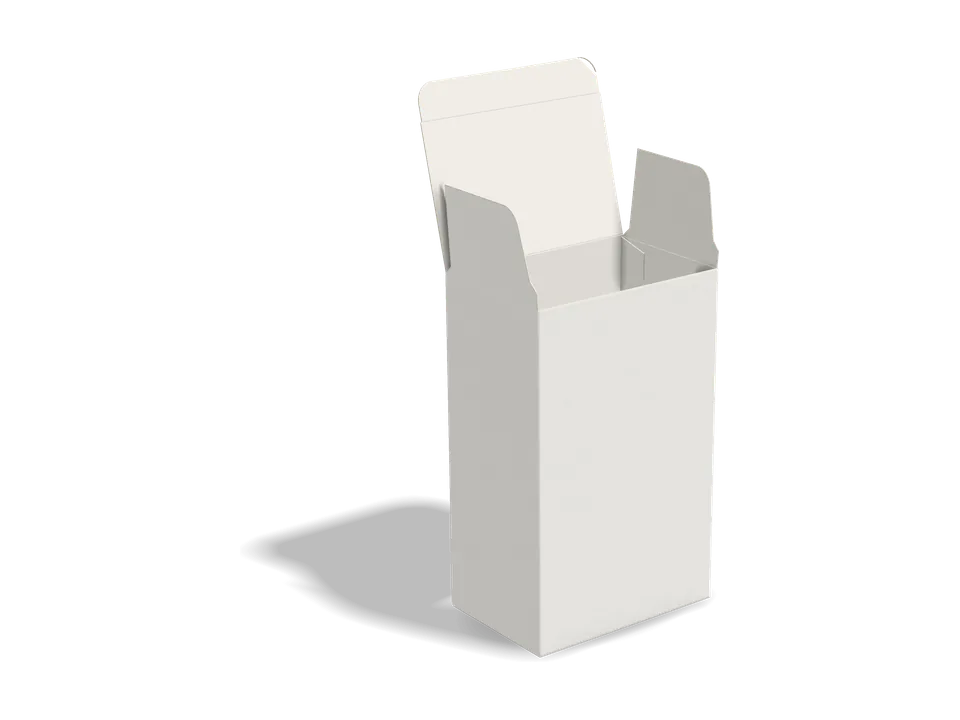

Lotion carton
Tall, narrow reverse tuck end for a lotion or serum bottle. Based on two reference dielines.
Dieline shown at 75 × 50 × 120 mm (inside). Enter your own dimensions in the editor.

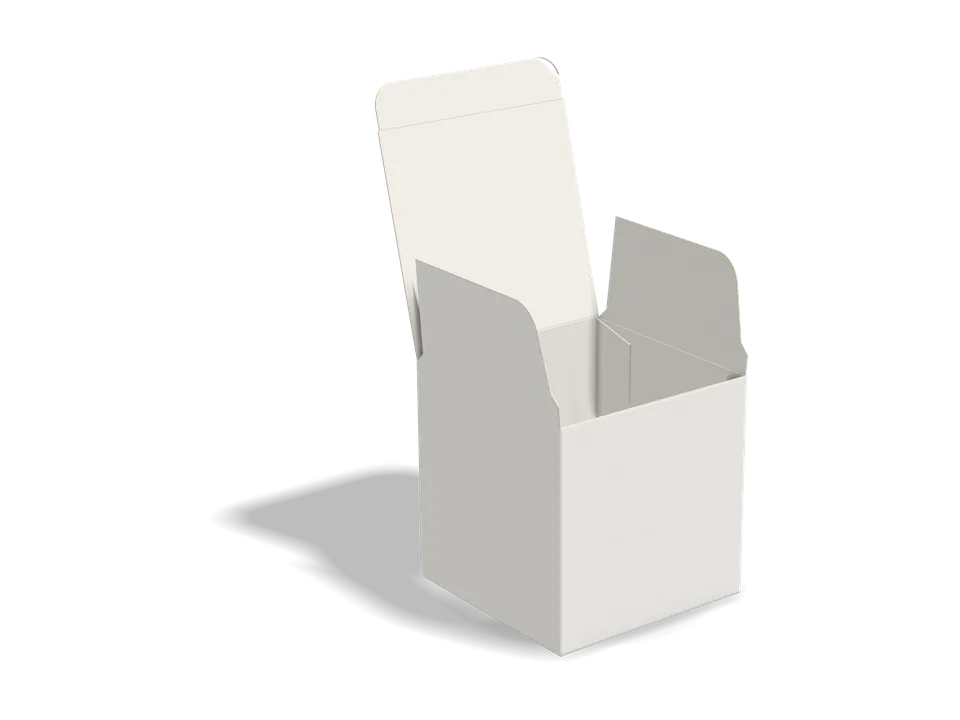

Cosmetic jar carton
Compact reverse tuck end for a small balm or cream jar. Based on two reference dielines.
Dieline shown at 65 × 65 × 65 mm (inside). Enter your own dimensions in the editor.

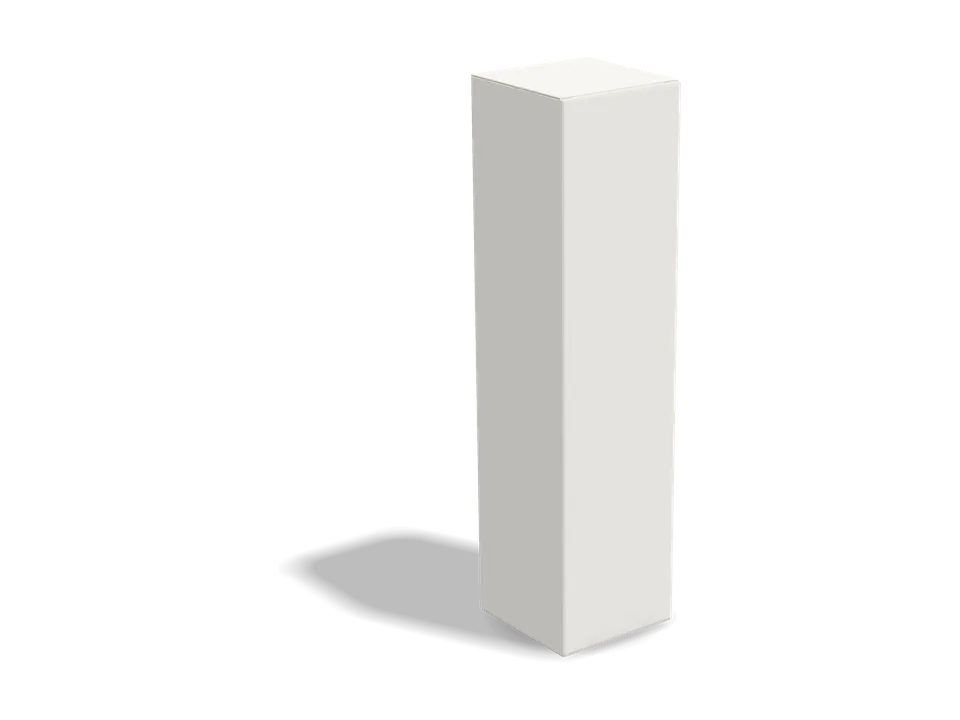

Slim carton (eyeliner, mascara)
Very narrow reverse tuck end with small, finely locking tuck flaps: eyeliner, mascara, lipstick. Based on two reference dielines.
Dieline shown at 30 × 30 × 120 mm (inside). Enter your own dimensions in the editor.

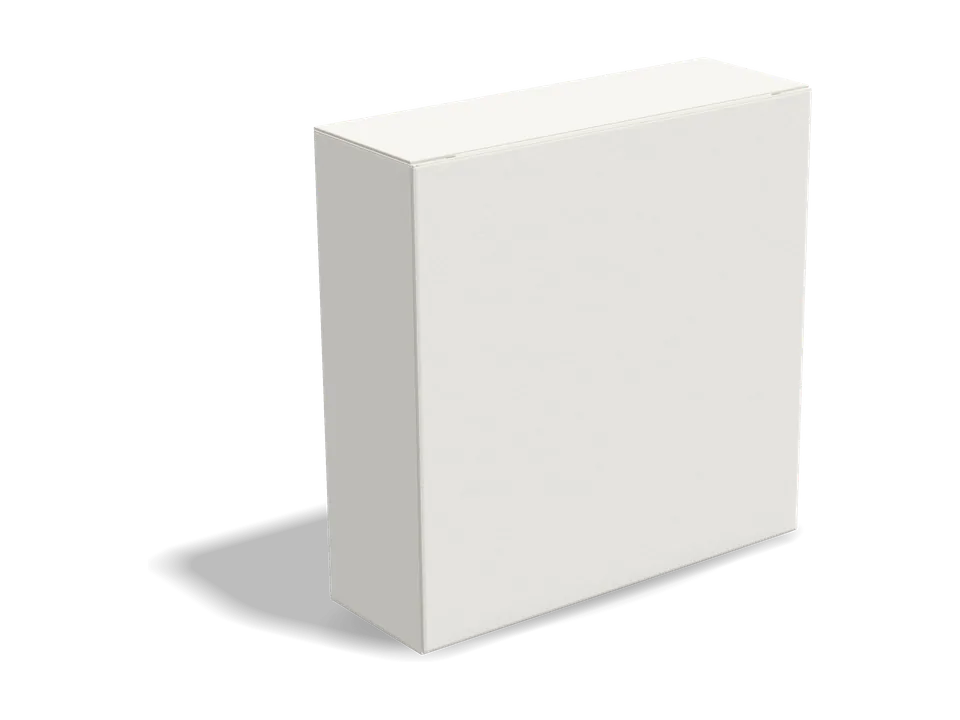

Compact powder carton
Flat, wide straight tuck end for a compact or palette. Based on two reference dielines.
Dieline shown at 75 × 25 × 75 mm (inside). Enter your own dimensions in the editor.
Window display carton
Straight tuck end with a large window on the back, one recessed and one beveled corner: the product shows through the box. Based on two reference dielines.
Dieline shown at 160 × 70 × 200 mm (inside). Enter your own dimensions in the editor.

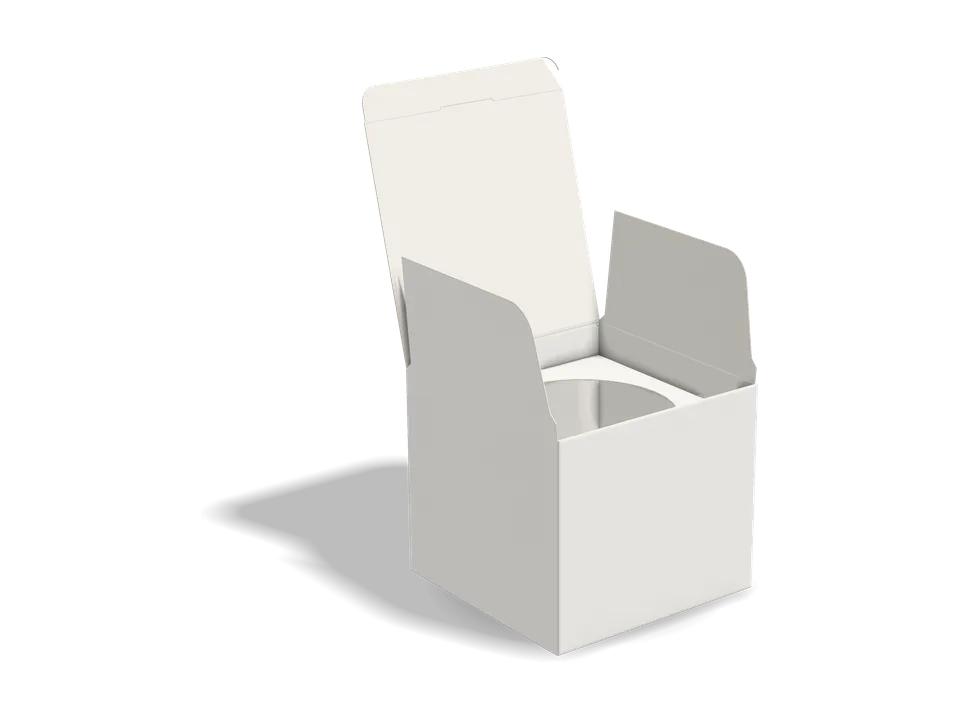

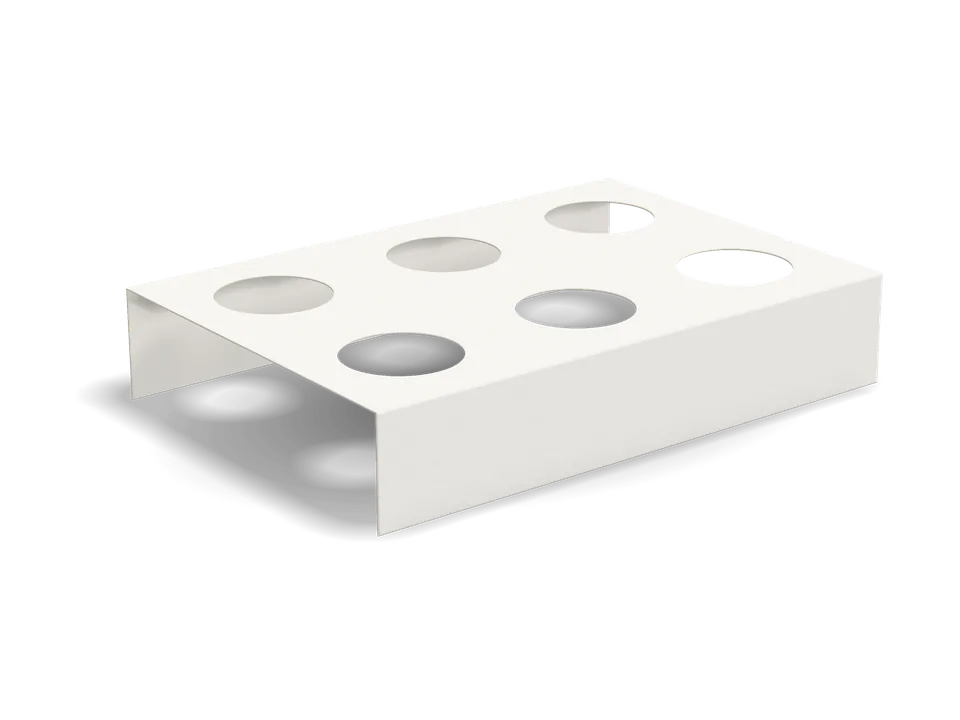

Carton with jar inserts
Straight tuck end with a center lock and two die-cut inserts at top and bottom that hold the jar in the middle of the box. Based on two reference dielines.
Dieline shown at 90 × 90 × 80 mm (inside). Enter your own dimensions in the editor.

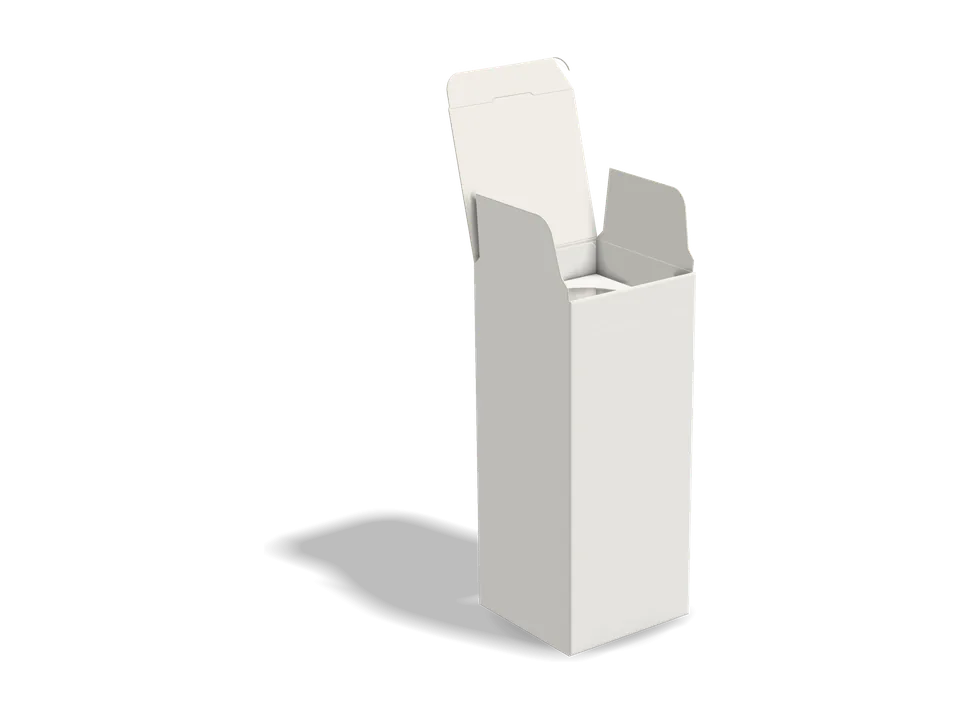

Carton with bottle inserts
The same carton with die-cut inserts, in a tall format: the bottle is held at the neck and the base. Based on two reference dielines.
Dieline shown at 50 × 50 × 120 mm (inside). Enter your own dimensions in the editor.
Hanging eyeliner carton
Slim carton with tuck flaps and a hang tab: eyeliner, mascara, pencils. Based on three Pacdora dielines.
Dieline shown at 29.4 × 29.4 × 158.9 mm (inside). Enter your own dimensions in the editor.

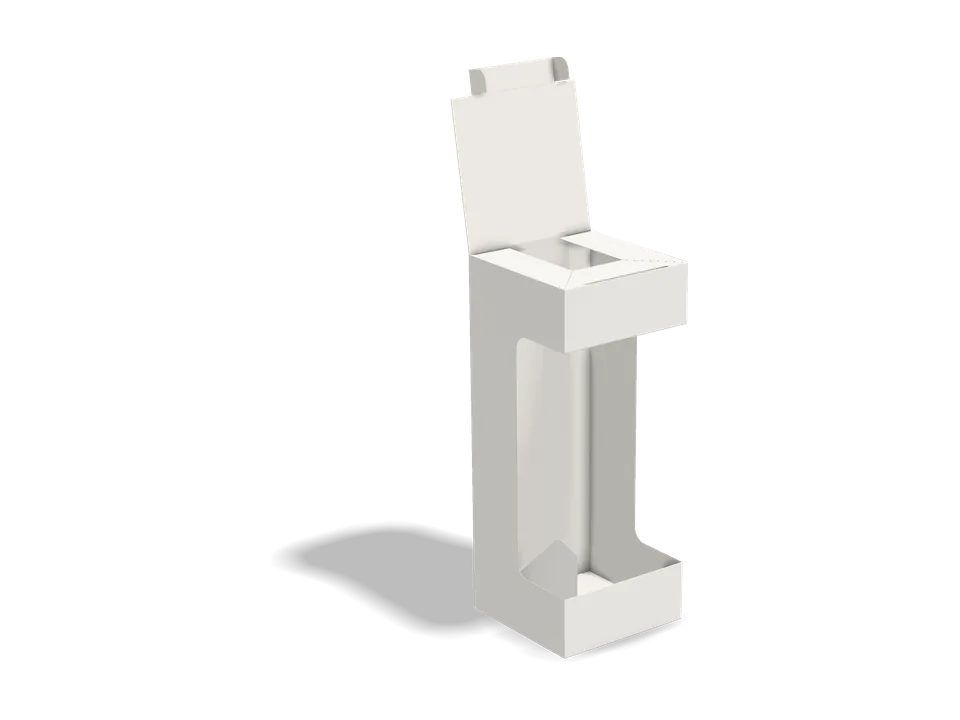

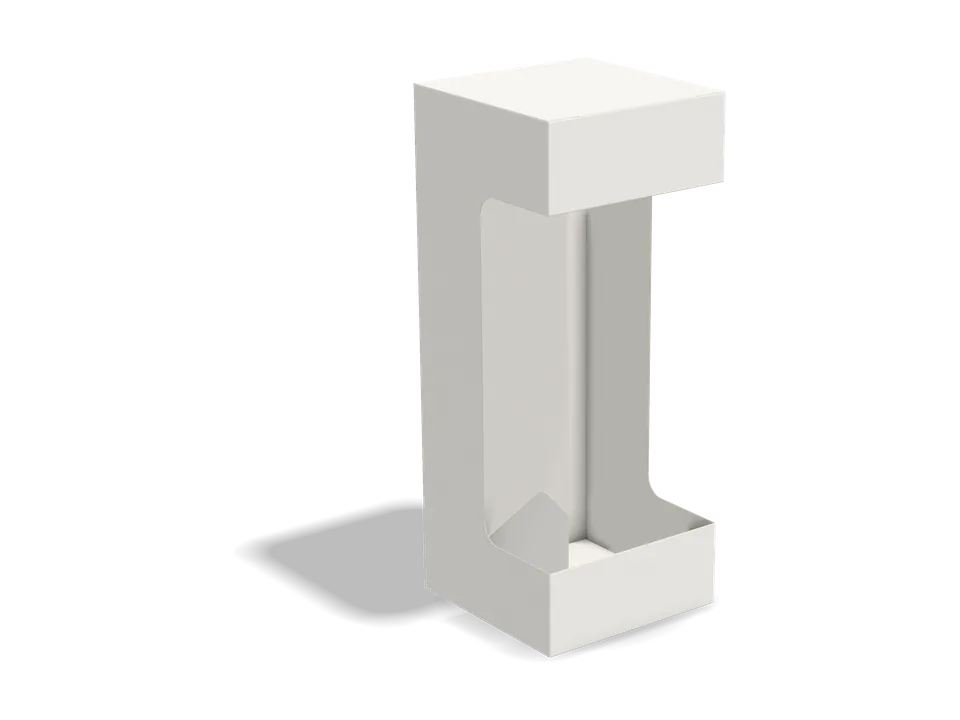

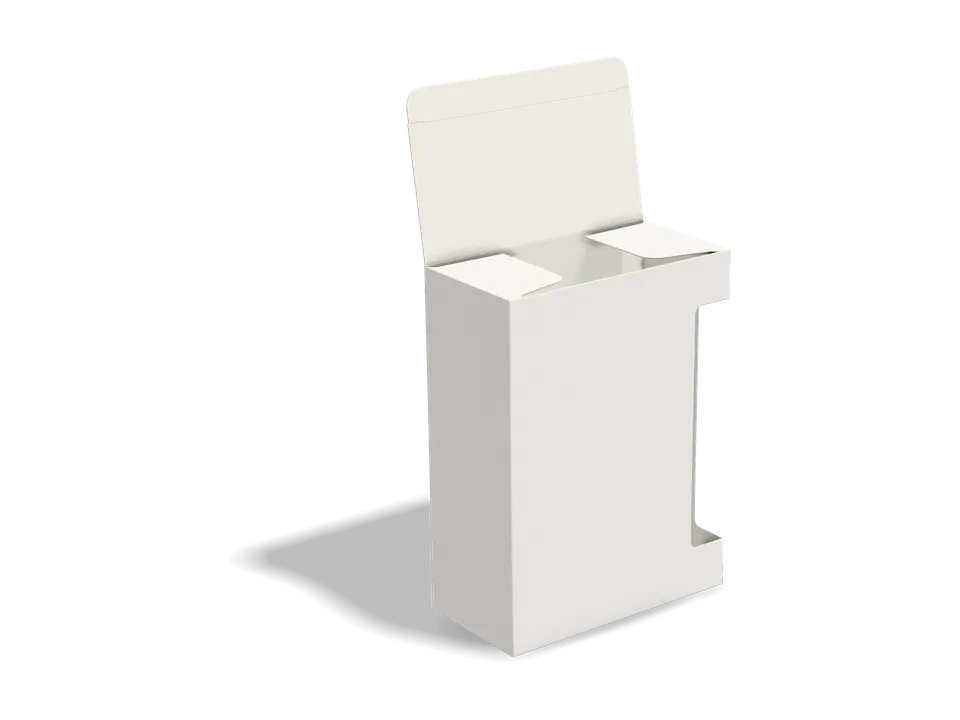

Square window carton
Tall carton with a square base, tuck flaps and a front window. Based on three Pacdora dielines.
Dieline shown at 120 × 120 × 300 mm (inside). Enter your own dimensions in the editor.
Reverse tuck end carton (Pacdora)
Pacdora variant of the reverse tuck end carton, size range calculated from three dielines. Based on three Pacdora dielines.
Dieline shown at 119.4 × 59.4 × 158.9 mm (inside). Enter your own dimensions in the editor.

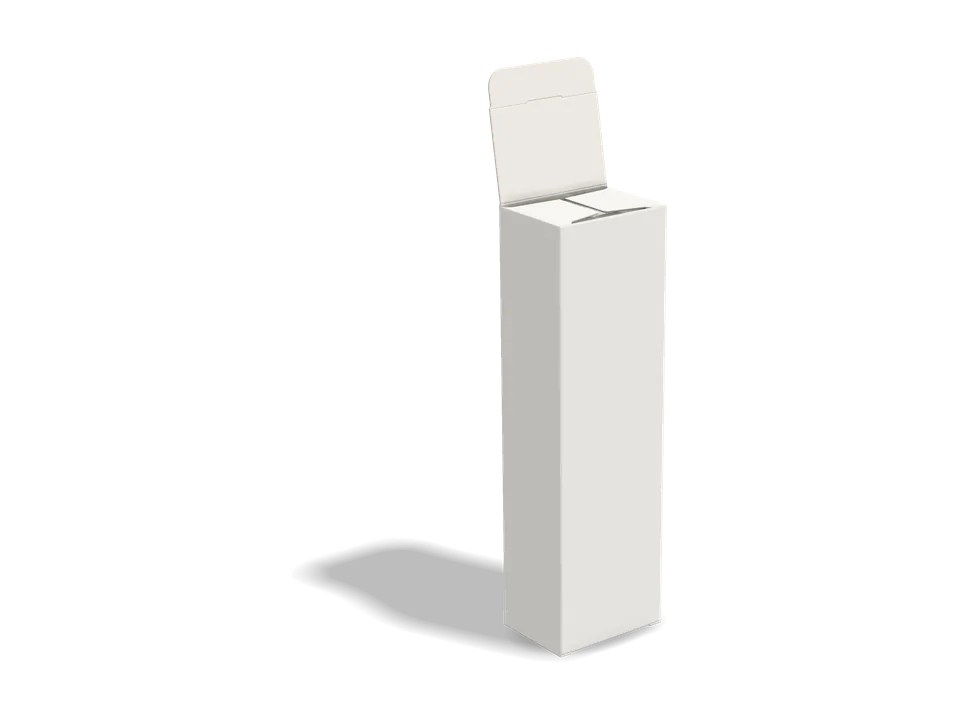

Serum carton with insert
Slim carton with a locking tuck flap and an inner insert for the bottle. Based on three Pacdora dielines.
Dieline shown at 35 × 25 × 120 mm (inside). Enter your own dimensions in the editor.
Straight tuck end carton (Pacdora)
Pacdora variant of the straight tuck end carton, size range calculated from three dielines. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

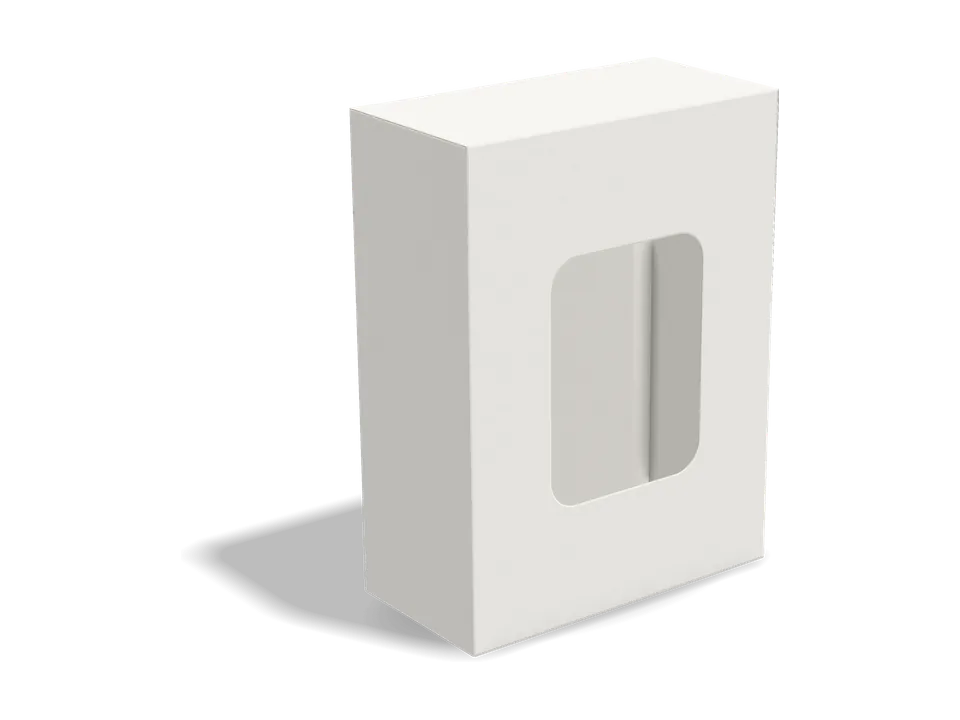

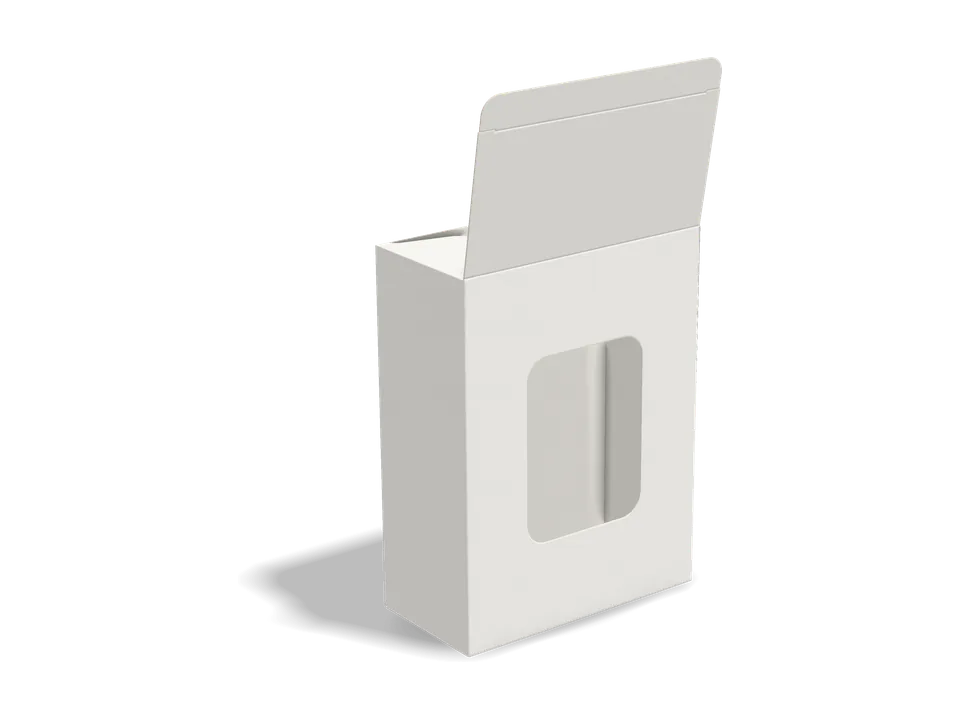

Window carton with opening back
Window display carton with an opening back. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

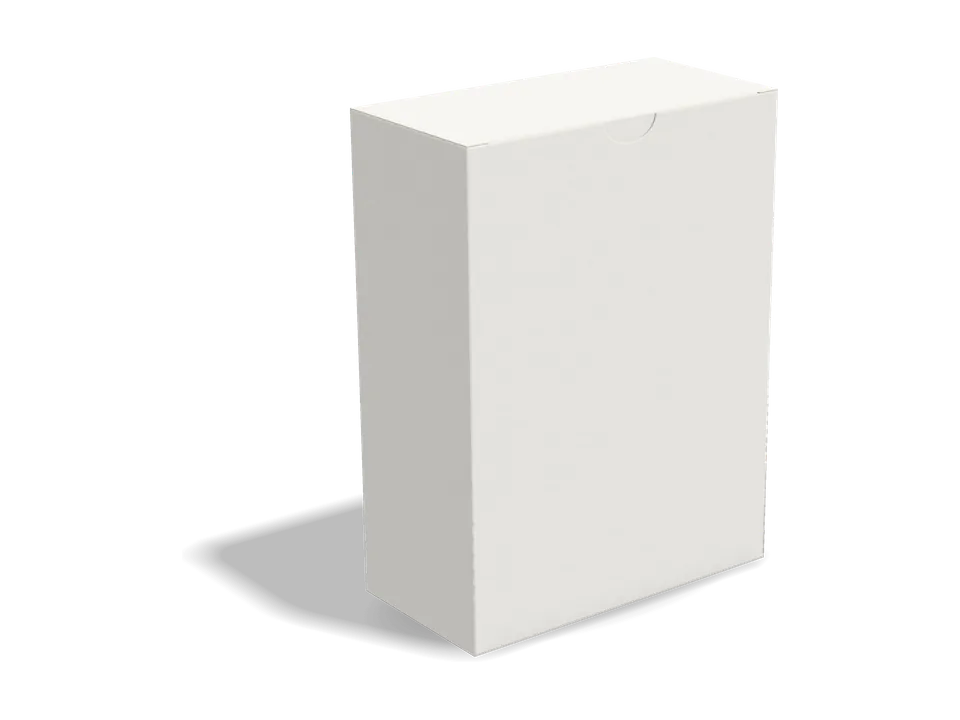

Double-tray carton
Tuck end carton lined with an inner tray. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.
Opening-back, double-tray carton
Carton with an opening back, lined with an inner tray. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.
In-line tuck end carton
Tuck end carton whose glue flap is in line with the panels. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.
Tuck end carton with insert
Tuck end carton with a locked insert to hold the product. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

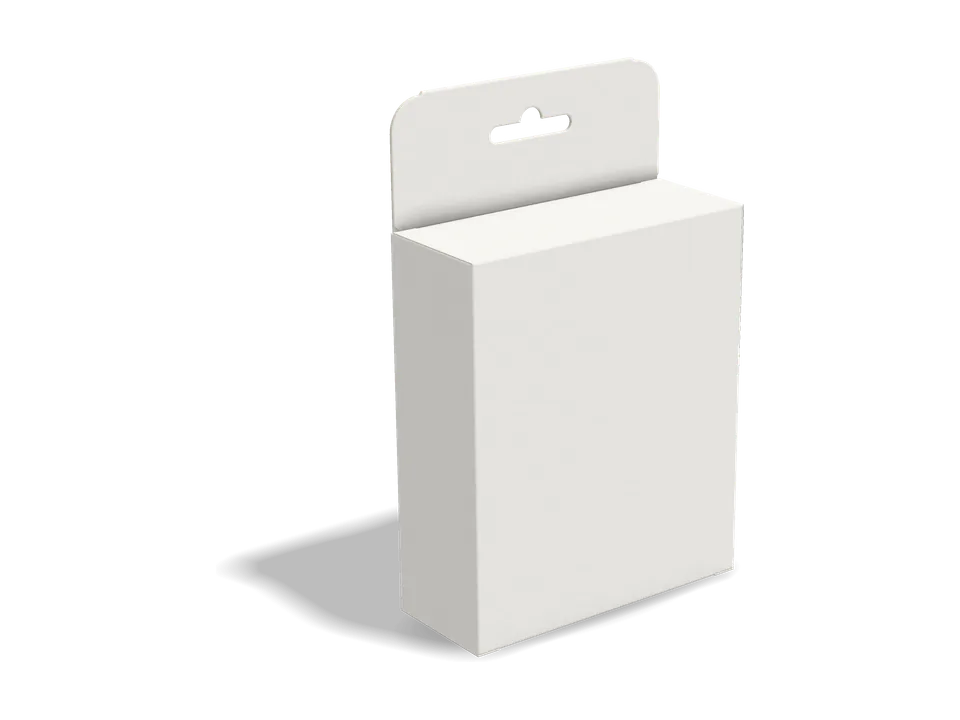

Hanging carton with hook
Tuck end carton with a die-cut hang hook. Based on three Pacdora dielines.
Dieline shown at 99.4 × 39.4 × 118.9 mm (inside). Enter your own dimensions in the editor.

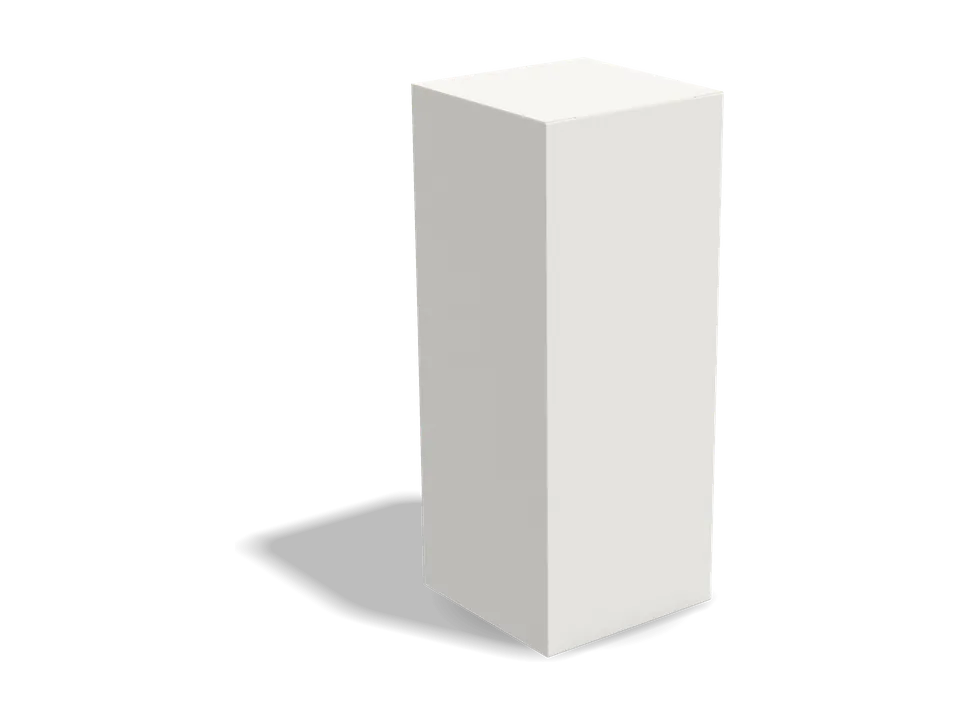

Tall square carton
Tuck end carton with a square base, tall format: bottles, tubes. Based on three Pacdora dielines.
Dieline shown at 120 × 120 × 300 mm (inside). Enter your own dimensions in the editor.
Locking tuck carton
Carton whose top tuck flap locks with a tab. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

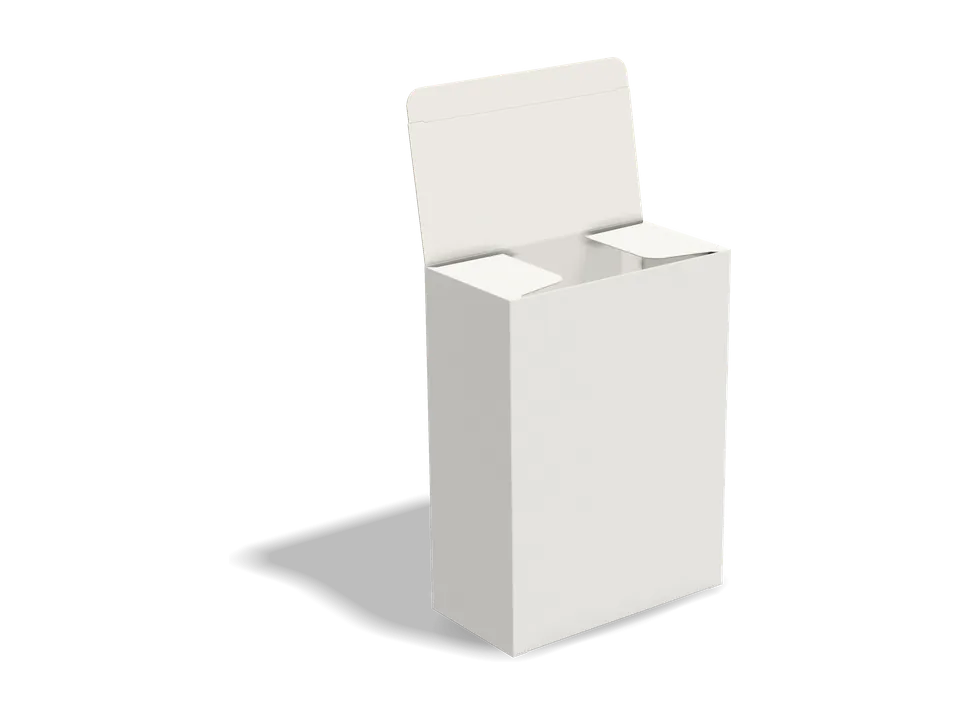

FEFCO 0210
Straight tuck end carton based on the FEFCO 0210 standard. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

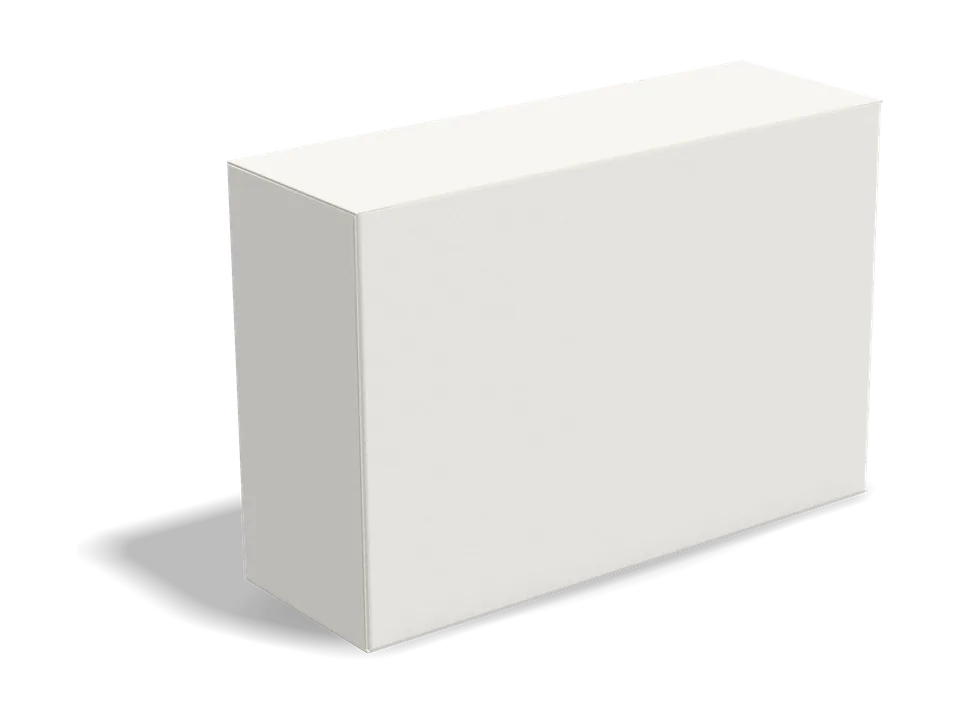

Flat-glued carton
Tuck end carton delivered glued flat, ready to set up. Based on three Pacdora dielines.
Dieline shown at 120 × 40 × 80 mm (inside). Enter your own dimensions in the editor.
Same-side tuck end carton
Carton whose two tuck flaps open on the same side. Based on three Pacdora dielines.
Dieline shown at 119.4 × 59.4 × 158.4 mm (inside). Enter your own dimensions in the editor.
Window carton
Tuck end carton with a front window. Based on three Pacdora dielines.
Dieline shown at 119.4 × 59.4 × 158.9 mm (inside). Enter your own dimensions in the editor.
Slot-lock carton
Carton whose tuck flap locks into a slot. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

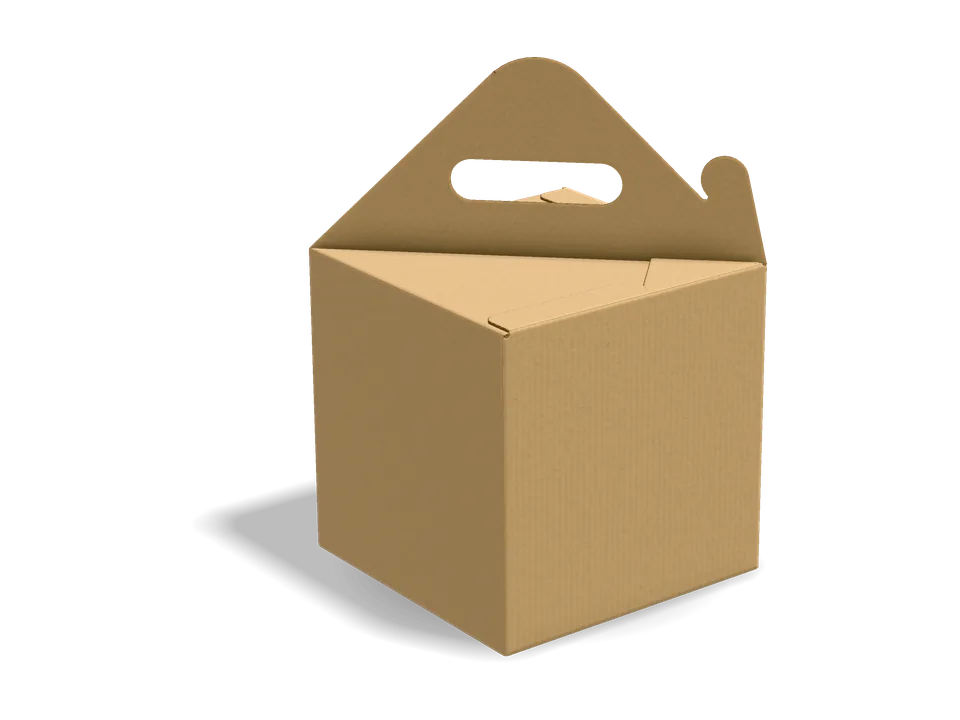

Carton with handle
Tuck end carton topped with a carry handle. Based on three Pacdora dielines.
Dieline shown at 150 × 150 × 150 mm (inside). Enter your own dimensions in the editor.
Tear-strip carton
Reverse tuck end carton with a perforated tear strip and pull tab: tamper-evident opening. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 59.9 × 59.9 × 89.9 mm (inside). Enter your own dimensions in the editor.
Dispenser carton
Reverse tuck end carton with a pre-cut opening on the front: sachets, tissues, samples. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 74.5 × 69.5 × 139.5 mm (inside). Enter your own dimensions in the editor.
Snap-lock and auto-lock bottoms
Paperboard and micro-flute · bottoms that set up without glue
1-2-3 bottom carton
Snap-lock bottom: four flaps that lock together in three moves, no glue. For heavier products: bottles, jars, gift boxes.
Dieline shown at 100 × 50 × 180 mm (inside). Enter your own dimensions in the editor.
1-2-3 bottom carton with thumb notch
The same snap-lock bottom, with a notch on the back to pull the tuck flap. Cream jars, ampoules, small bottles.
Dieline shown at 75 × 75 × 60 mm (inside). Enter your own dimensions in the editor.
Double-hook product box
E-flute micro-corrugated board with a double-hook 1-2-3 bottom: stiffer than a folding carton, for heavy products and e-commerce shipping.
Dieline shown at 250 × 100 × 160 mm (inside). Enter your own dimensions in the editor.
Auto-lock bottom box
Crash-lock bottom pre-glued at the factory: the box ships flat and the bottom forms in one move. Double lid closed with a safety lock. Micro-flute board.
Dieline shown at 200 × 120 × 150 mm (inside). Enter your own dimensions in the editor.

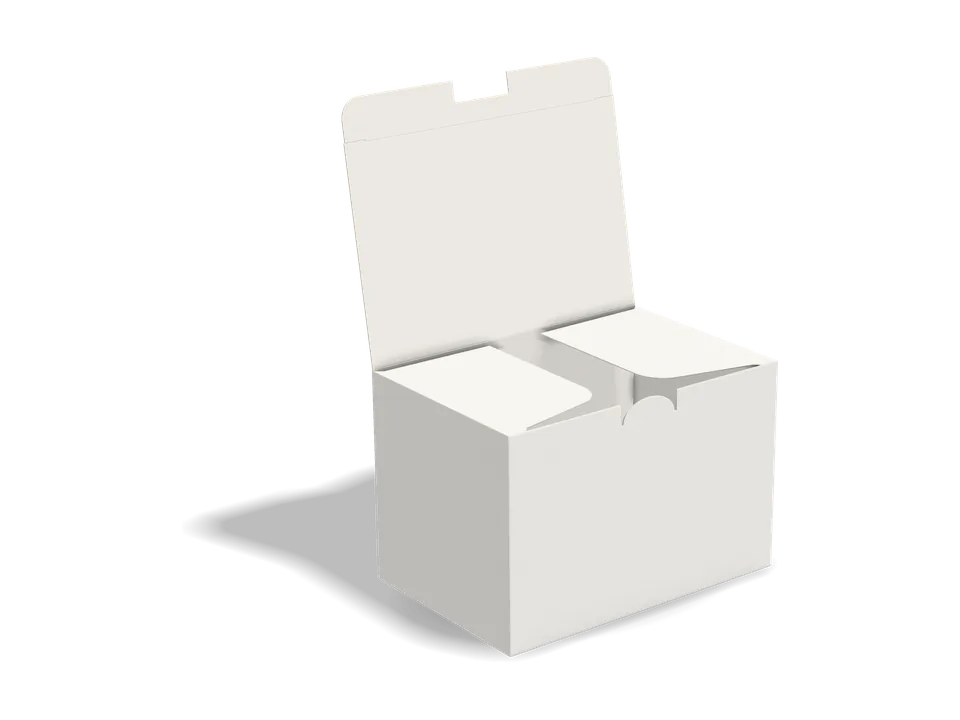

Auto-lock bottom carton
The bottom forms as the carton is opened, tuck flap at the top. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160.5 mm (inside). Enter your own dimensions in the editor.
Auto-lock bottom, opening back
Auto-lock bottom carton with an opening back, for shipping. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160.5 mm (inside). Enter your own dimensions in the editor.
Cereal carton
Large auto-lock bottom carton, cereal box format. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

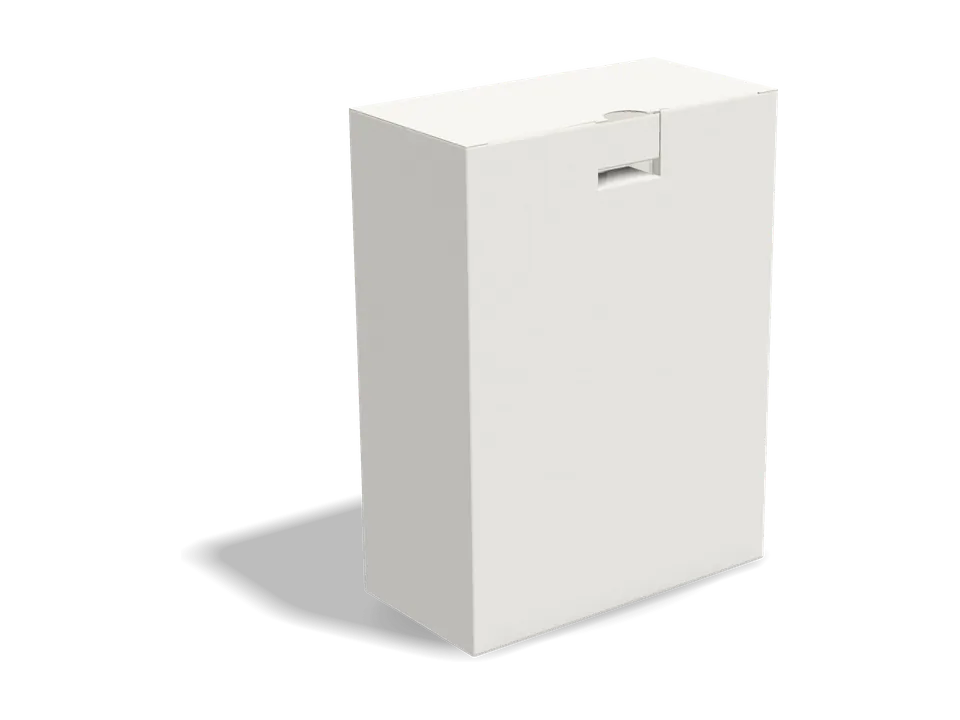

Auto-lock bottom with thumb notch
Auto-lock bottom carton, finger notch on the tuck flap. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.
Snap-lock bottom carton
Carton with a snap-in 1-2-3 bottom and a top tuck flap. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

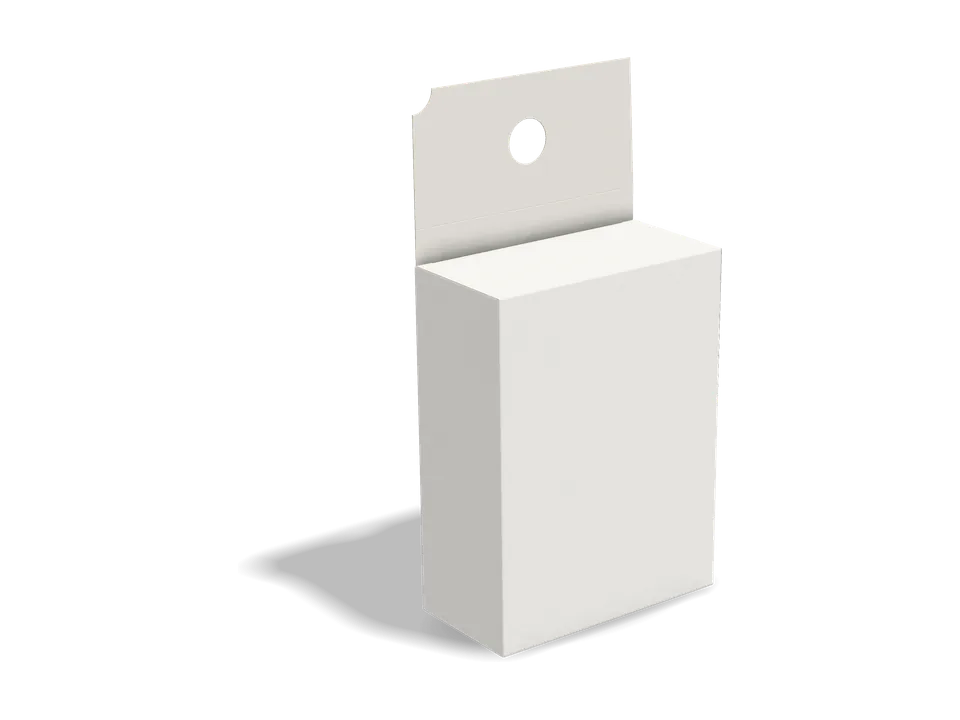

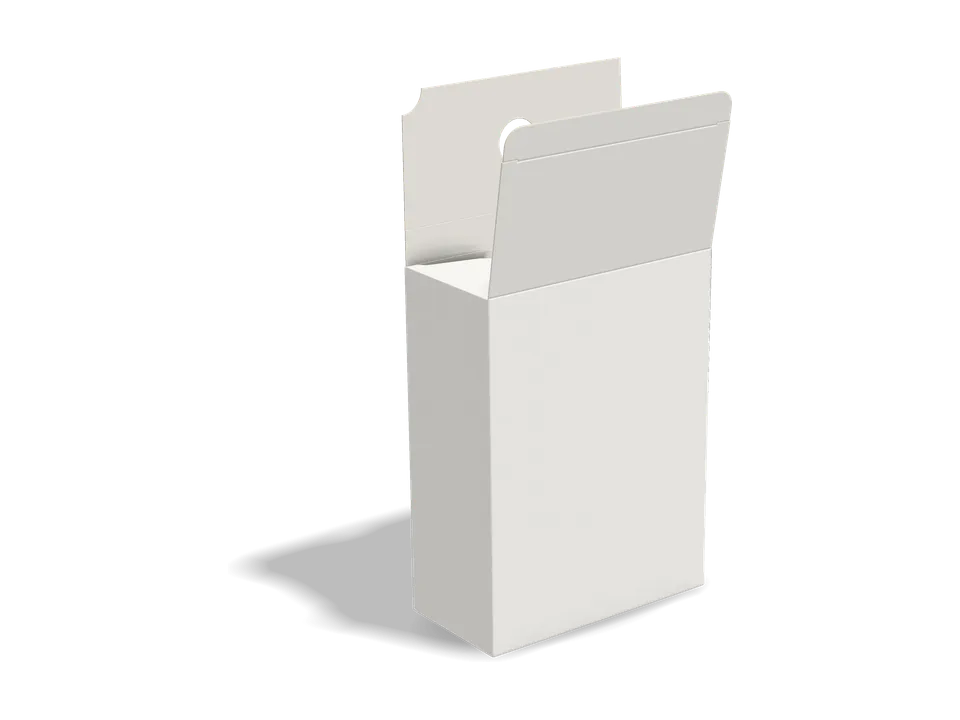

Hanging auto-lock bottom
Auto-lock bottom carton with a hang tab. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.
Auto-lock bottom, shipping
Reinforced auto-lock bottom carton for shipping. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.

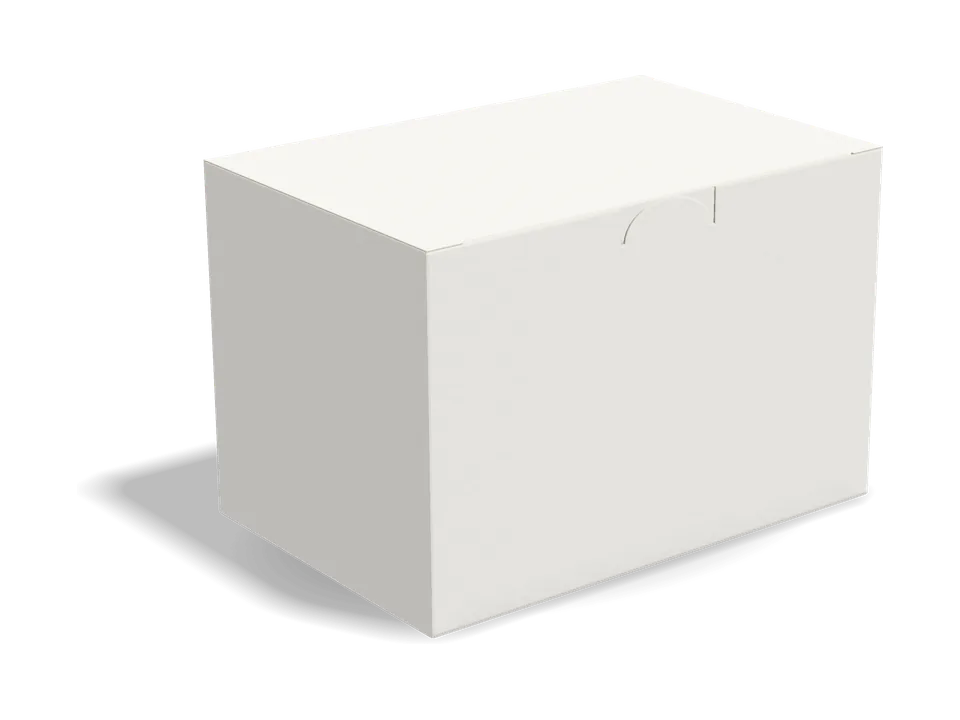

Simplified auto-lock bottom
Simplified auto-lock bottom carton, cube format. Based on three Pacdora dielines.
Dieline shown at 150 × 100 × 100 mm (inside). Enter your own dimensions in the editor.
Auto-lock bottom with insert
Reverse tuck end carton with an auto-lock bottom and an inner insert. Based on three Pacdora dielines.
Dieline shown at 120 × 60 × 160 mm (inside). Enter your own dimensions in the editor.
FEFCO boxes
Corrugated board · board thickness as a parameter
Regular slotted container
FEFCO 0201 (RSC). Four flaps on top and bottom: the universal shipping box.
Dieline shown at 300 × 200 × 150 mm (inside). Enter your own dimensions in the editor.
Half slotted container
FEFCO 0200 (HSC). Flaps on one side only: tray, insert or bottom-only box.
Dieline shown at 300 × 200 × 150 mm (inside). Enter your own dimensions in the editor.

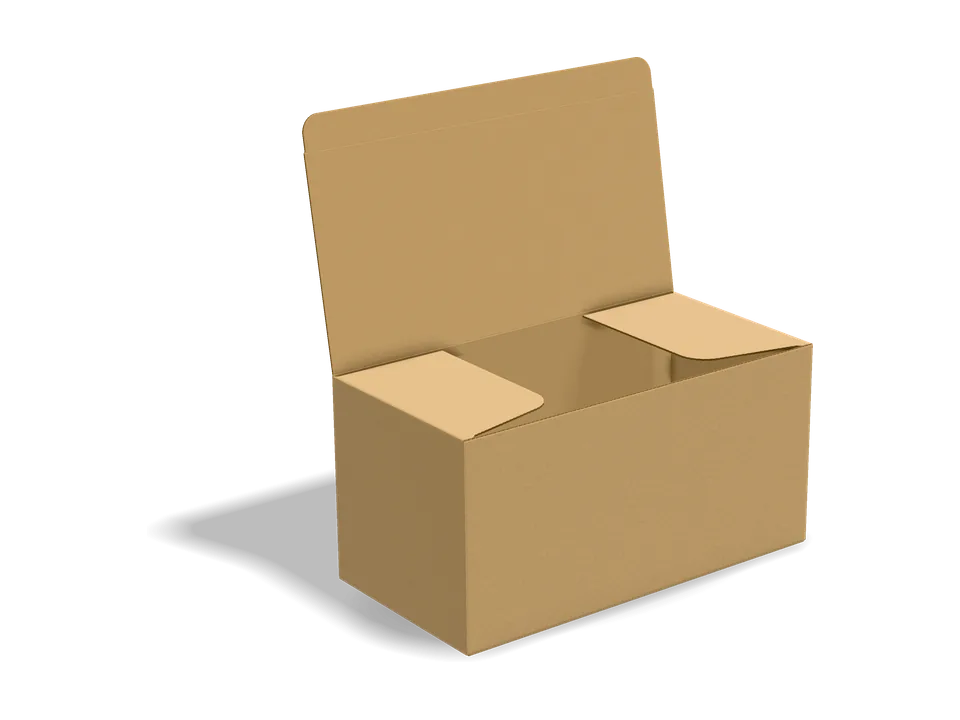

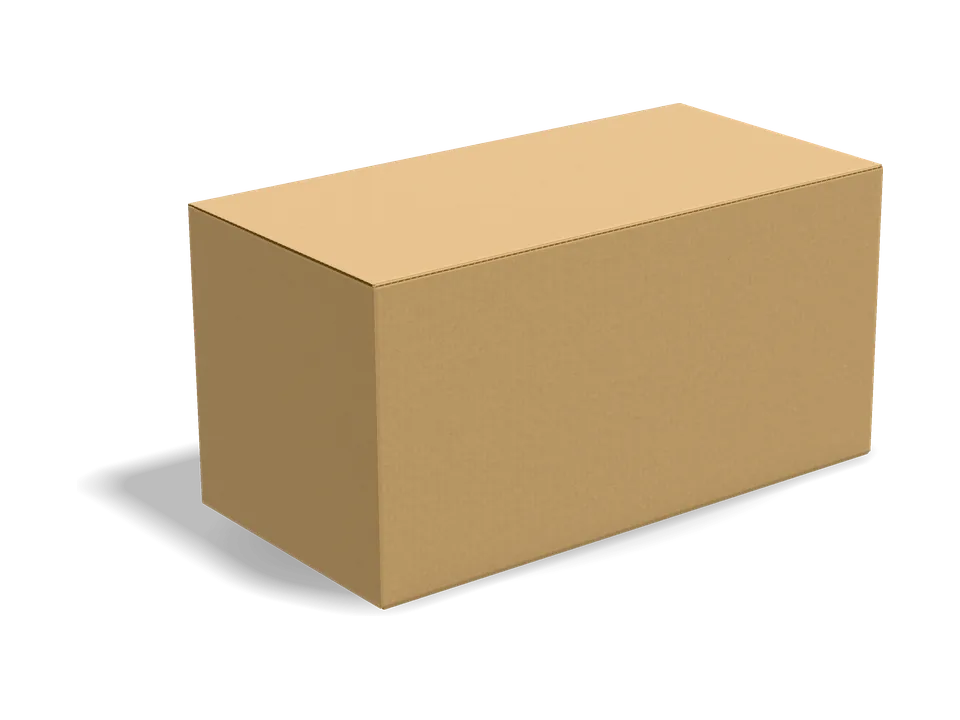

FEFCO 0212
Tall box with a hinged lid and tucked front flap, flapped bottom. Based on three Pacdora dielines.
Dieline shown at 300 × 150 × 148 mm (inside). Enter your own dimensions in the editor.

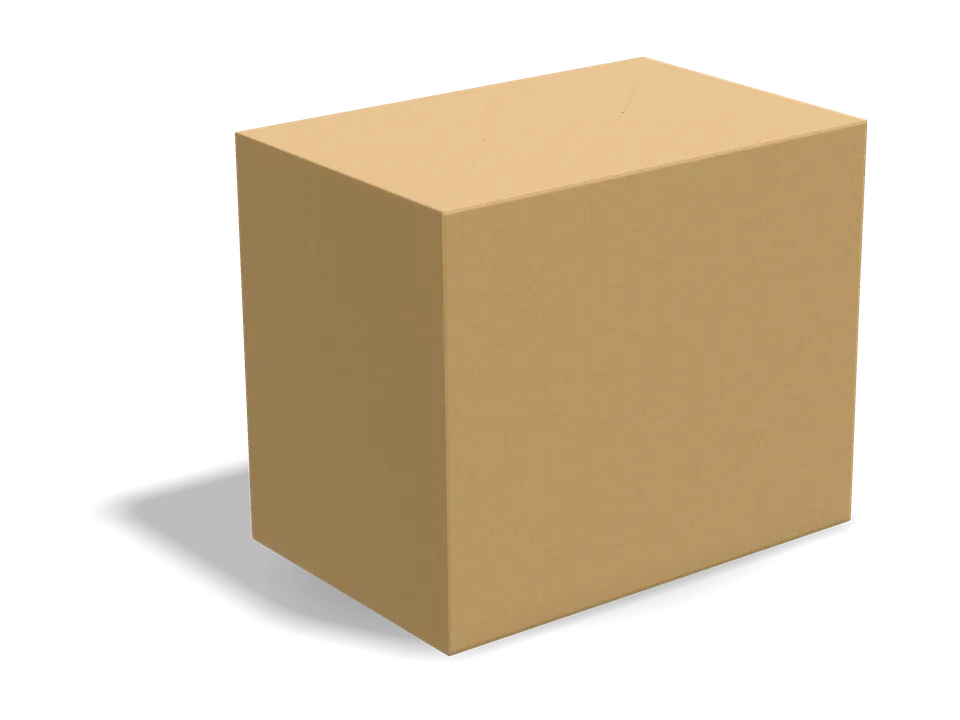

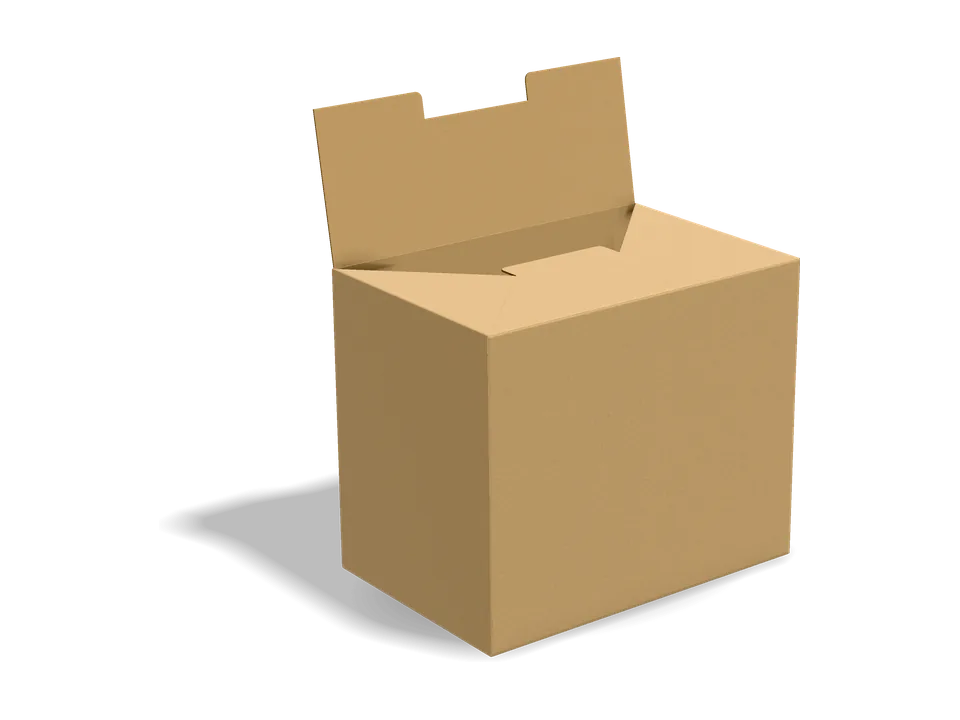

FEFCO 0220
Box closed top and bottom by two half-lids with snap-in tabs. Based on three Pacdora dielines.
Dieline shown at 298 × 198 × 248 mm (inside). Enter your own dimensions in the editor.
FEFCO 0404
Flat wraparound pack: the top and sides fold around the product. Based on three Pacdora dielines.
Dieline shown at 298 × 198.5 × 58 mm (inside). Enter your own dimensions in the editor.

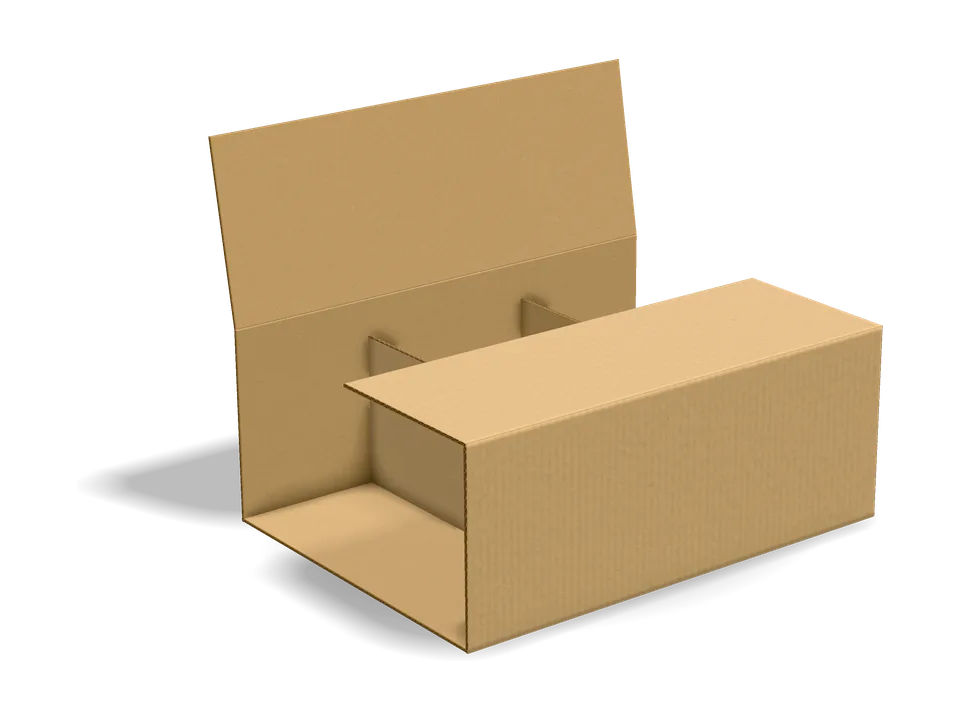

FEFCO 0405
Bliss-style tray with separate end panels. Based on three Pacdora dielines.
Dieline shown at 198 × 148 × 76 mm (inside). Enter your own dimensions in the editor.
FEFCO 0407
One-piece wraparound pack with interlocking end flaps. Based on three Pacdora dielines.
Dieline shown at 298 × 198 × 58 mm (inside). Enter your own dimensions in the editor.

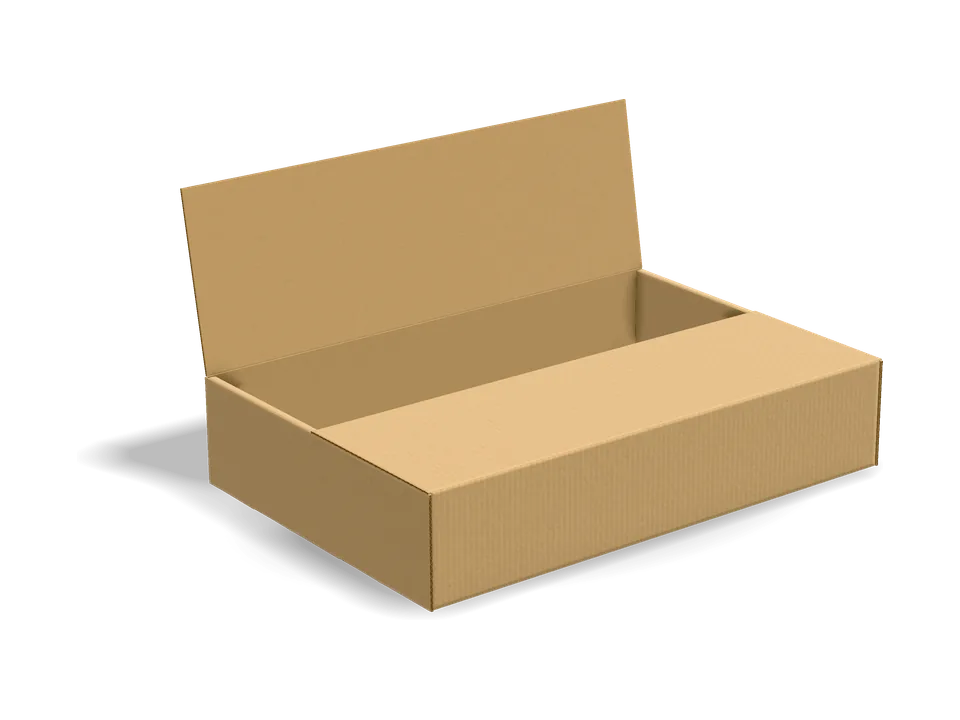

FEFCO 0414
Flat shipping box whose top opens in two panels. Based on three Pacdora dielines.
Dieline shown at 294 × 200 × 60 mm (inside). Enter your own dimensions in the editor.
FEFCO 0416
One-piece square folder, wallet-style opening, dust flaps. Based on three Pacdora dielines.
Dieline shown at 150 × 150 × 50 mm (inside). Enter your own dimensions in the editor.

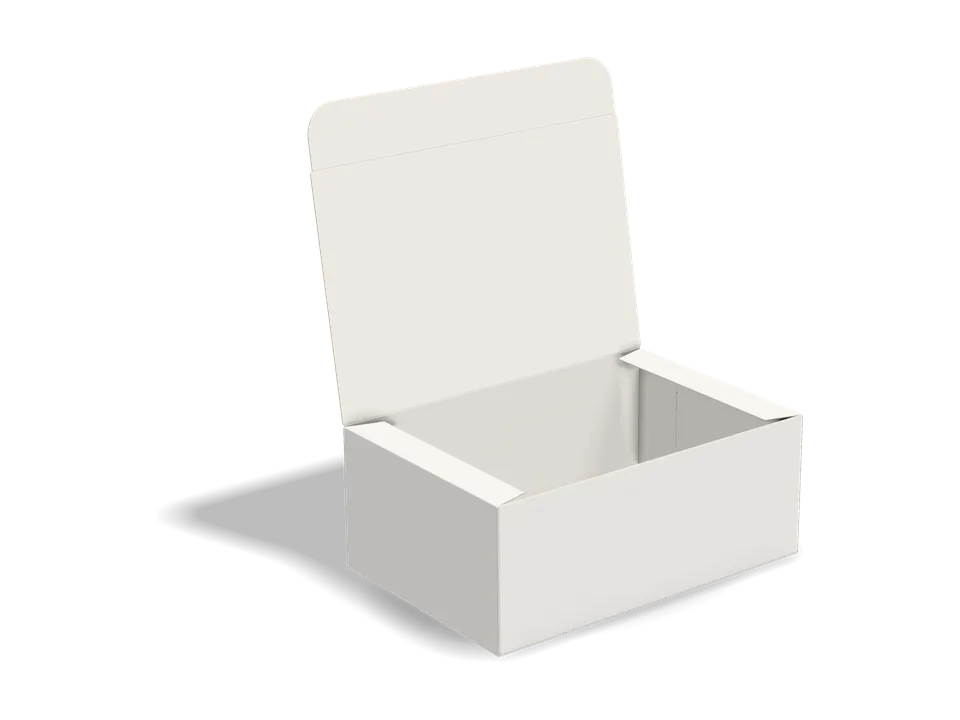

FEFCO 0420
Hinged-lid box with front tuck flap and double end walls. Based on three Pacdora dielines.
Dieline shown at 147.4 × 99.4 × 59.4 mm (inside). Enter your own dimensions in the editor.
FEFCO 0421
Tray with attached lid, double locked end walls. Based on three Pacdora dielines.
Dieline shown at 299 × 200 × 60 mm (inside). Enter your own dimensions in the editor.
FEFCO 0202
Slotted box whose outer flaps overlap by 50 mm: a stronger closure than a 0201. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 217 × 297 mm (inside). Enter your own dimensions in the editor.

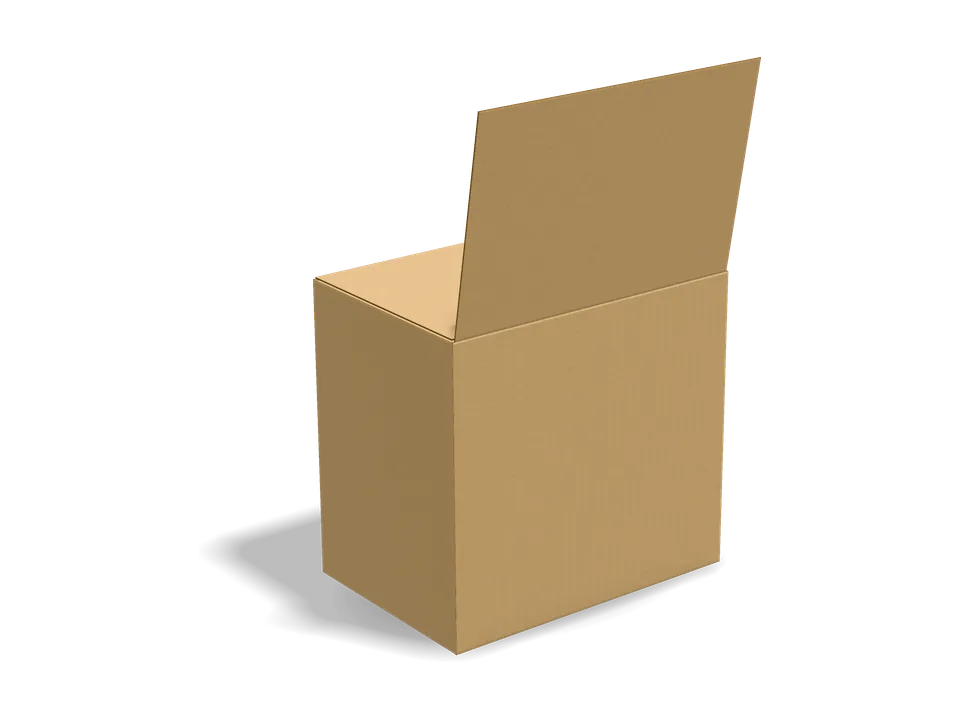

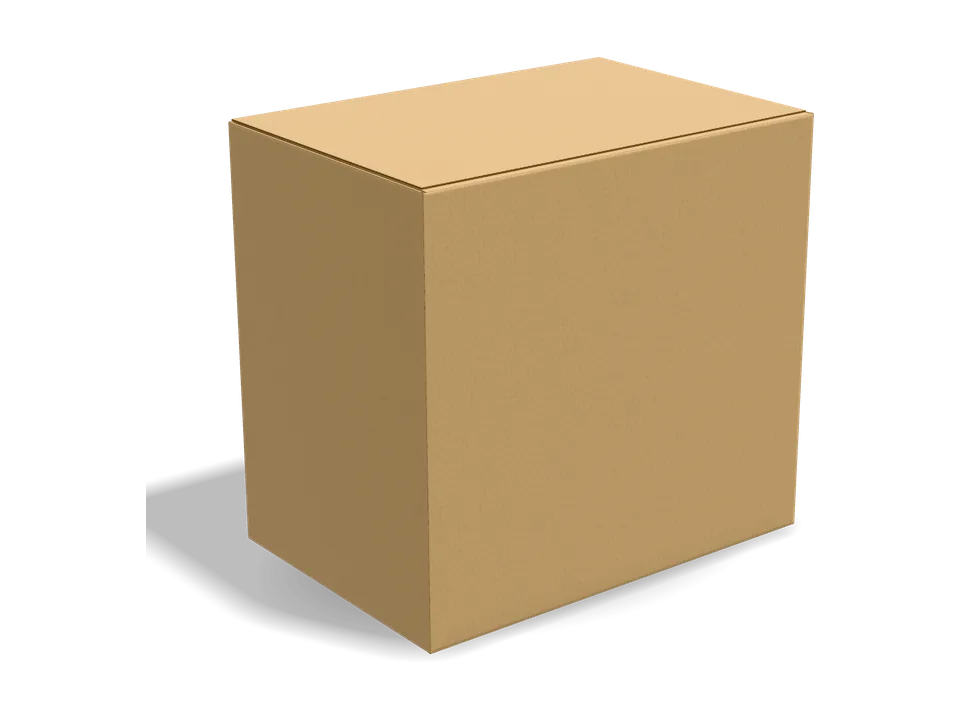

FEFCO 0203
The outer flaps cover the full width: double thickness on top and bottom, for heavy loads. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 217 × 297 mm (inside). Enter your own dimensions in the editor.
FEFCO 0204
Inner and outer flaps that meet in the center: top and bottom fully closed. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 217 × 297 mm (inside). Enter your own dimensions in the editor.

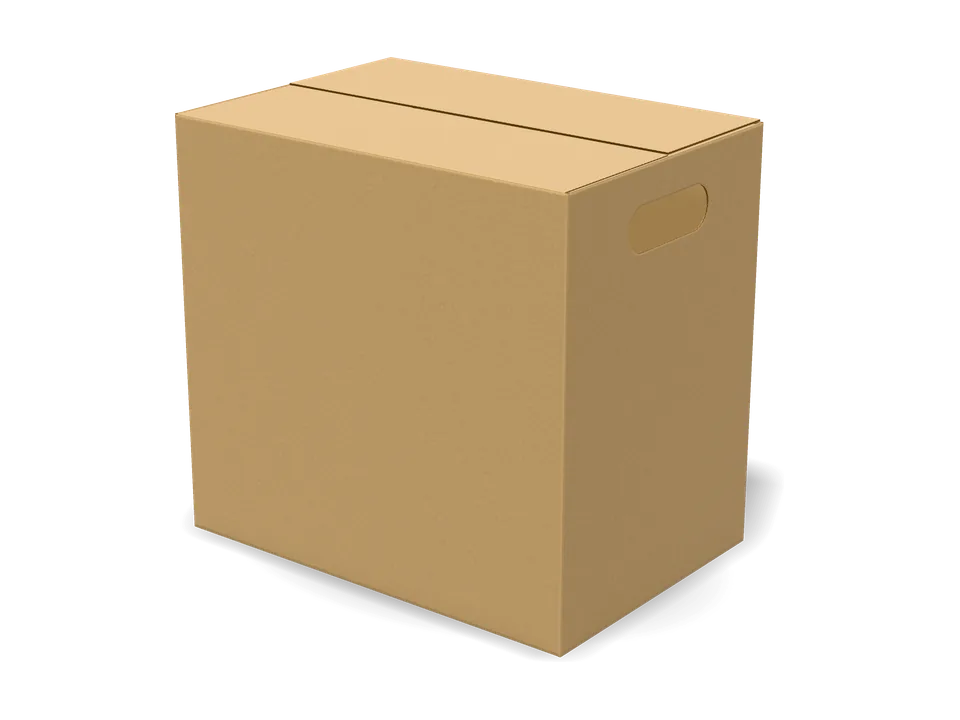

Box with hand holes
Regular slotted container with two hand holes on the short sides, for heavy parcels. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 217 × 297 mm (inside). Enter your own dimensions in the editor.
Box with tear strip
Regular slotted container with a perforated strip all the way around, near the top: your customer opens it without a box cutter. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 217 × 297 mm (inside). Enter your own dimensions in the editor.
Boxes with folded corners
Paperboard · our workshop's templates
Bakery box with folded corners
Auto-lock bottom and attached lid, based on our workshop's dielines.
Dieline shown at 150 × 150 × 65 mm (inside). Enter your own dimensions in the editor.
American cake box
10 cm high, gusseted corners. One piece up to 20 cm; base + lid from 23 cm. Based on our workshop's dielines.
Dieline shown at 150 × 150 × 100 mm (inside). Enter your own dimensions in the editor.
Tray cover box
Box with attached lid that fits over a cake tray: front, bottom, back, lid and front flap, corner flaps. In two pieces (base + lid) when it exceeds a 52 × 74 sheet. Based on our workshop's 20 × 30 and 30 × 40 dielines.
Dieline shown at 410 × 305 × 60 mm (inside). Enter your own dimensions in the editor.
Trays with rims
Paperboard · our workshop's dielines
Cake tray with rim
2 cm rolled rim, corner flaps and locking tabs. Based on our workshop's dielines.
Dieline shown at 300 × 200 × 20 mm (inside). Enter your own dimensions in the editor.

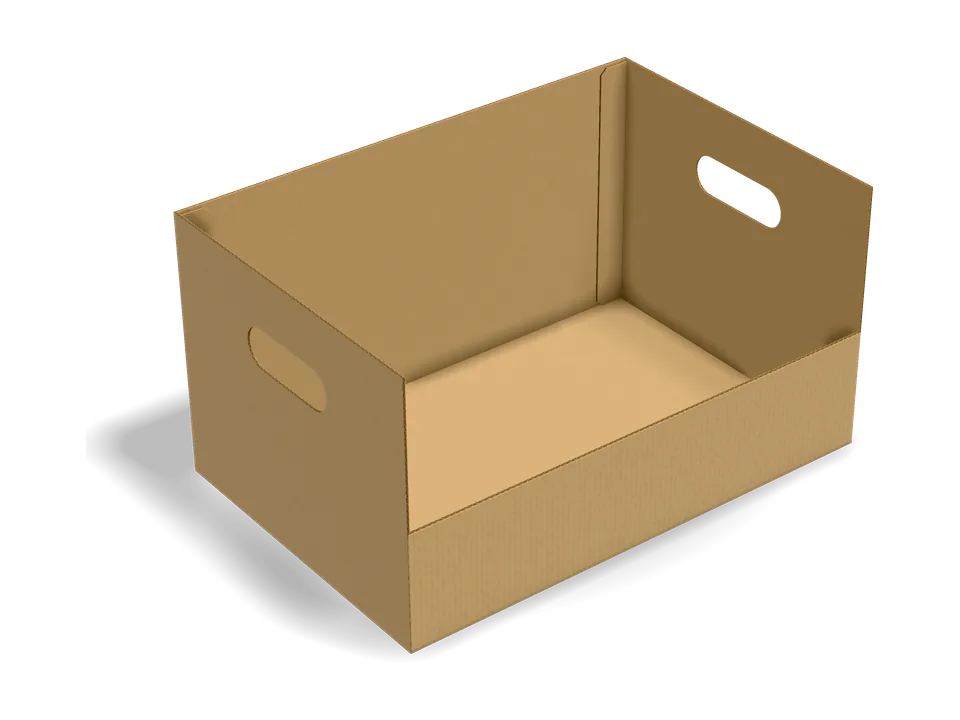

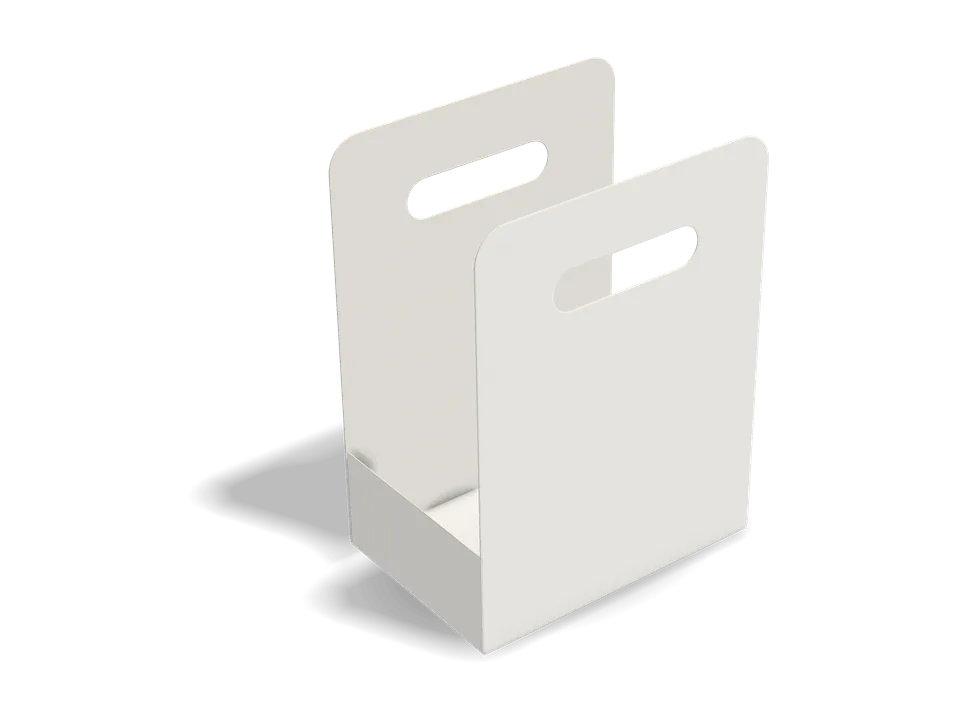

Tall tray with handles
Two tall walls with cut-out handles, locked corner flaps: carried like a basket.
Dieline shown at 118.4 × 79.4 × 159.7 mm (inside). Enter your own dimensions in the editor.

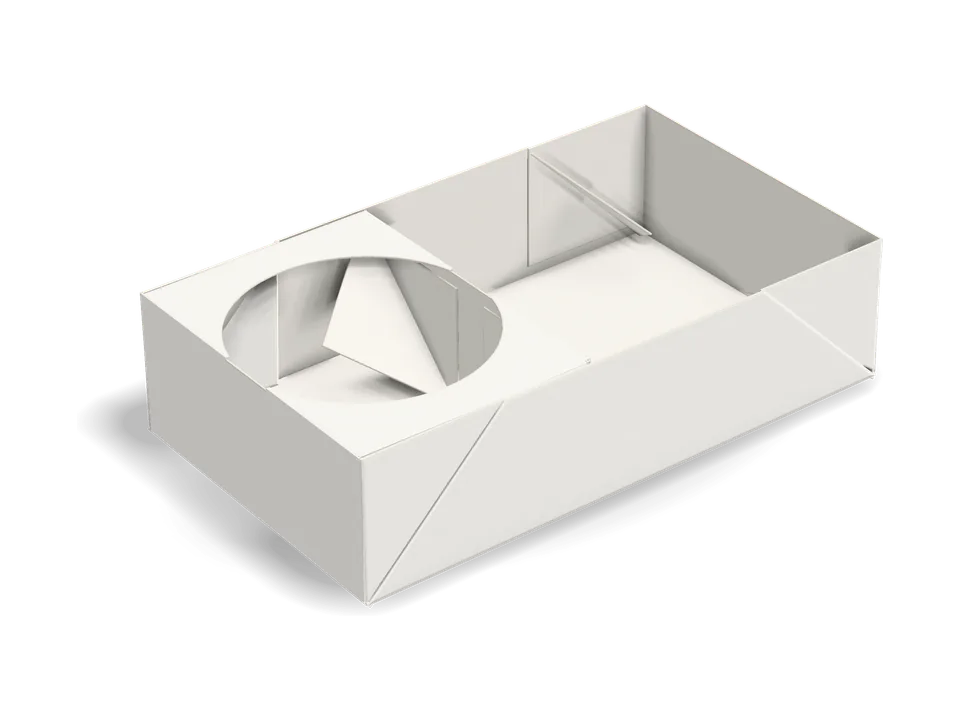

Meal tray with cup holder
Tray with folded corners and a die-cut platform for the cup: a complete meal in a single piece.
Dieline shown at 119.5 × 69.5 × 29.5 mm (inside). Enter your own dimensions in the editor.

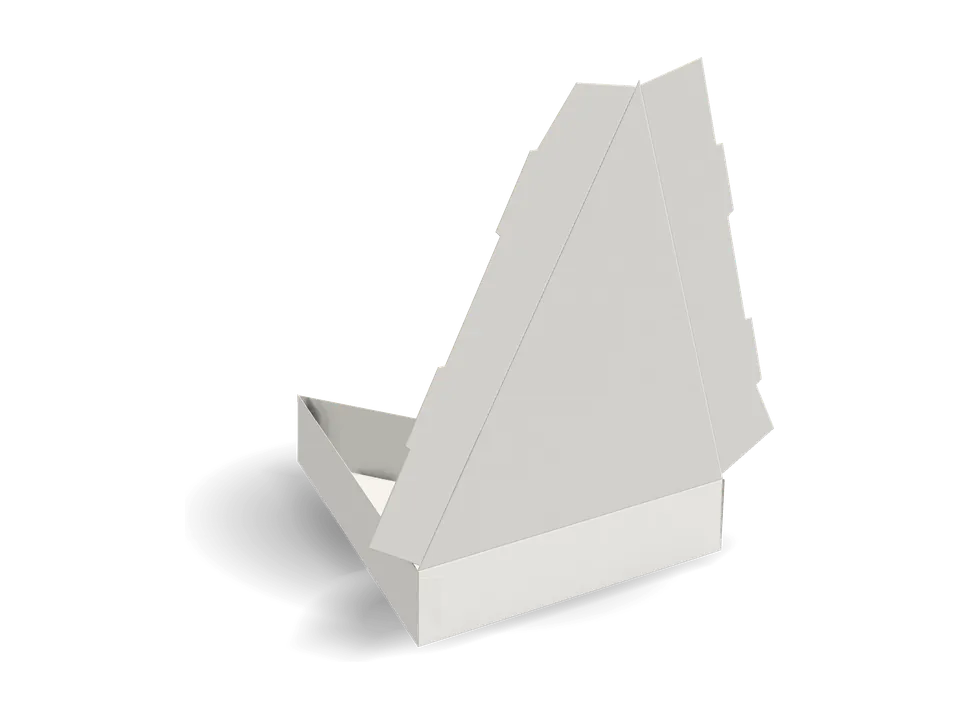

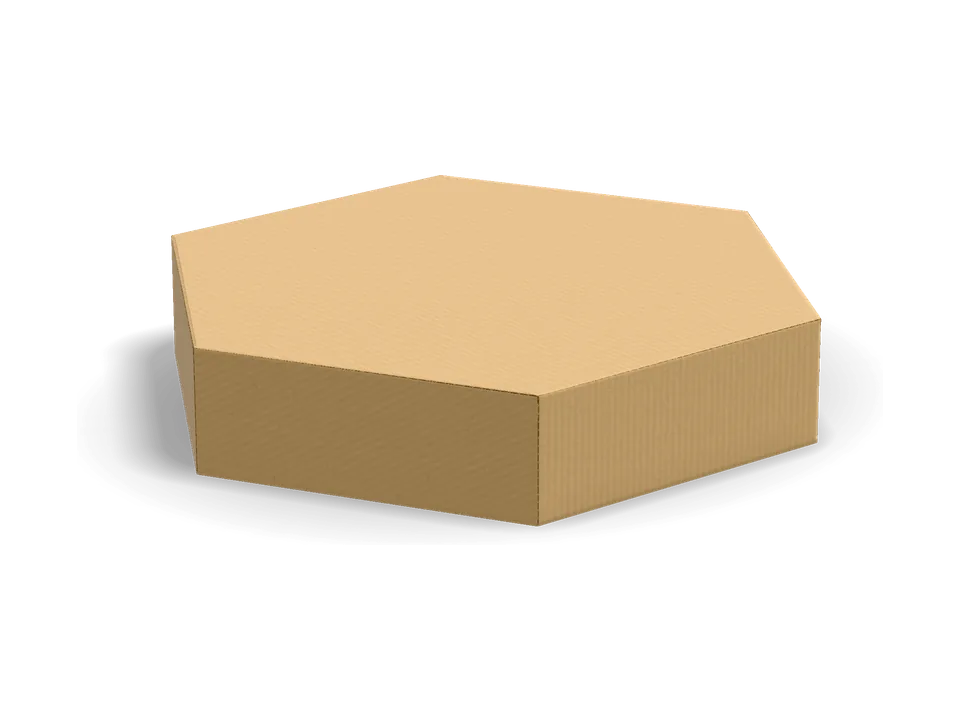

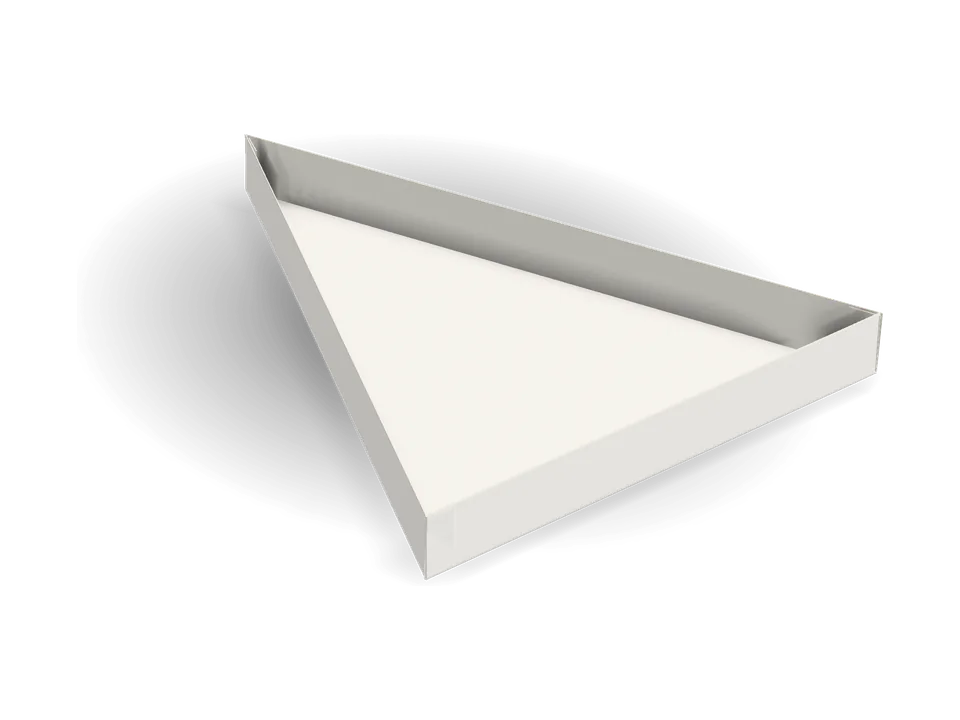

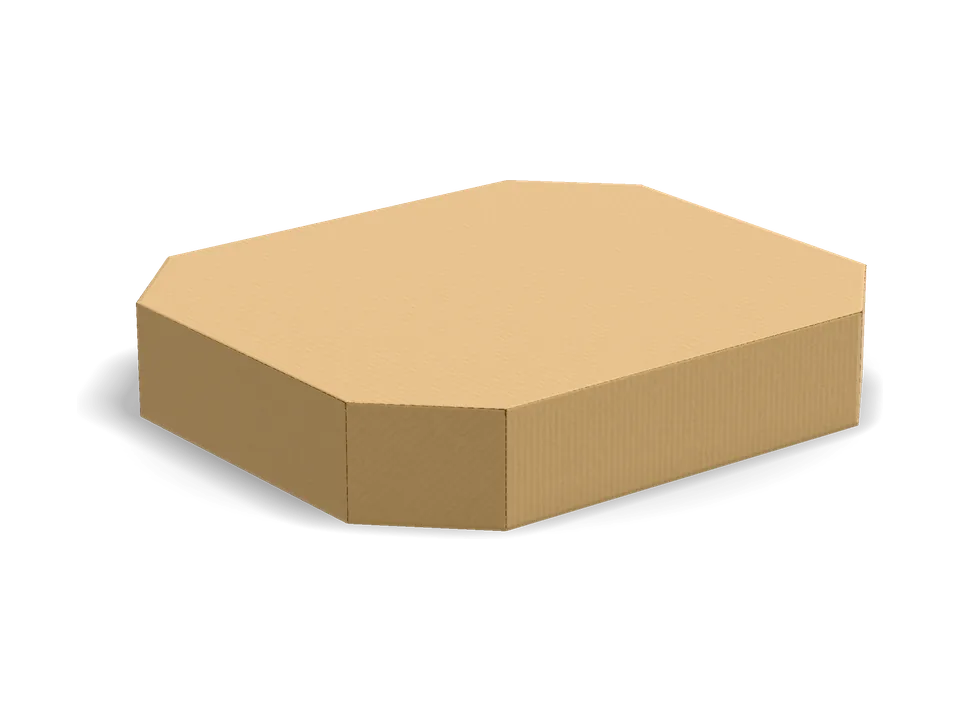

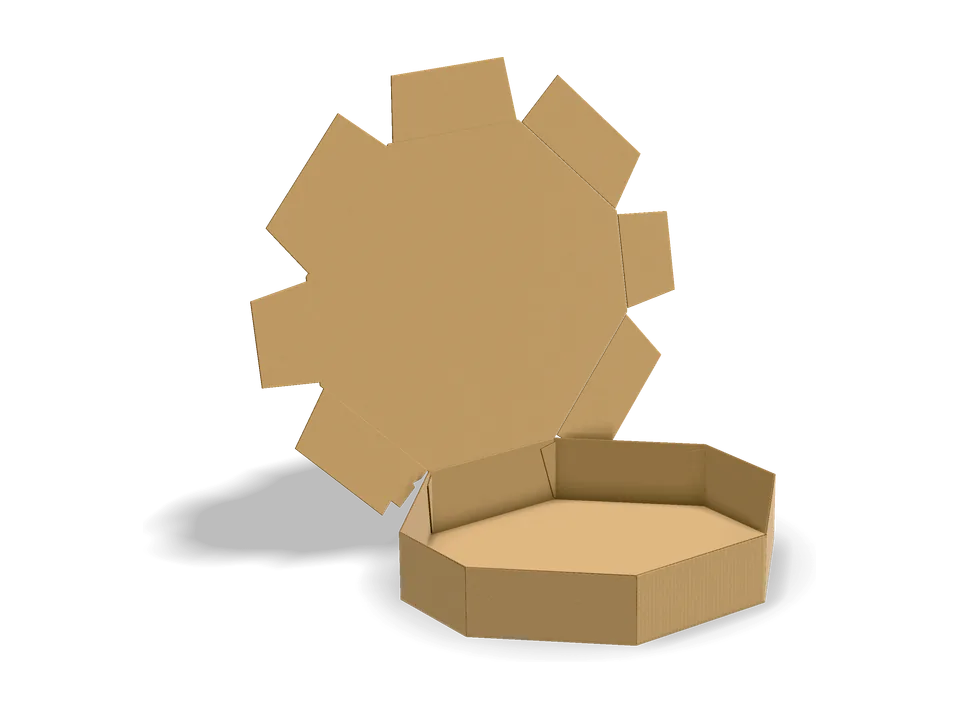

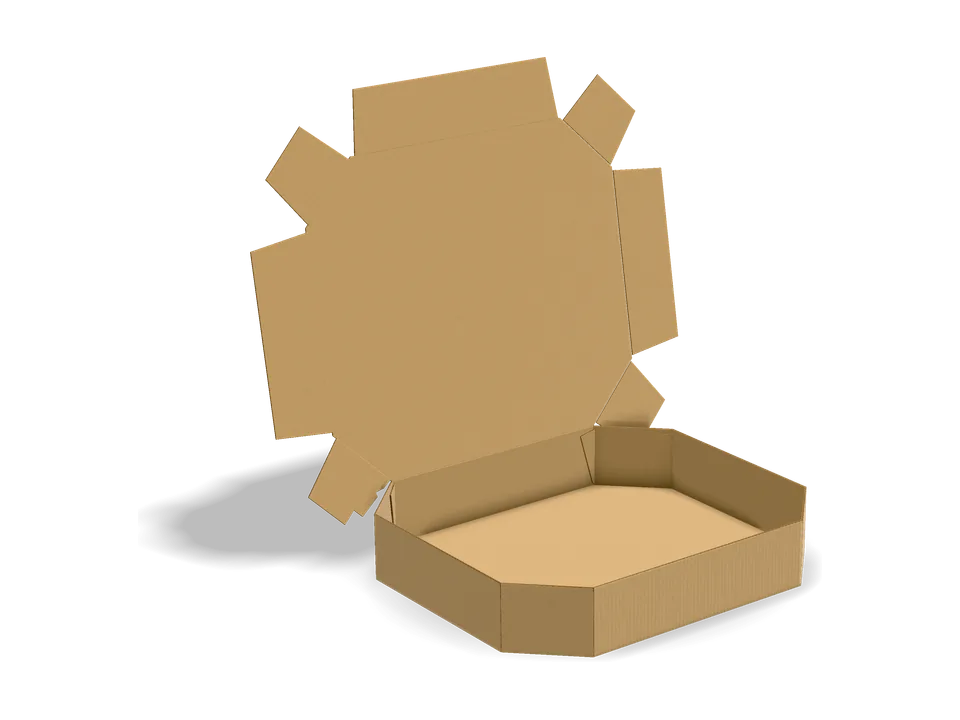

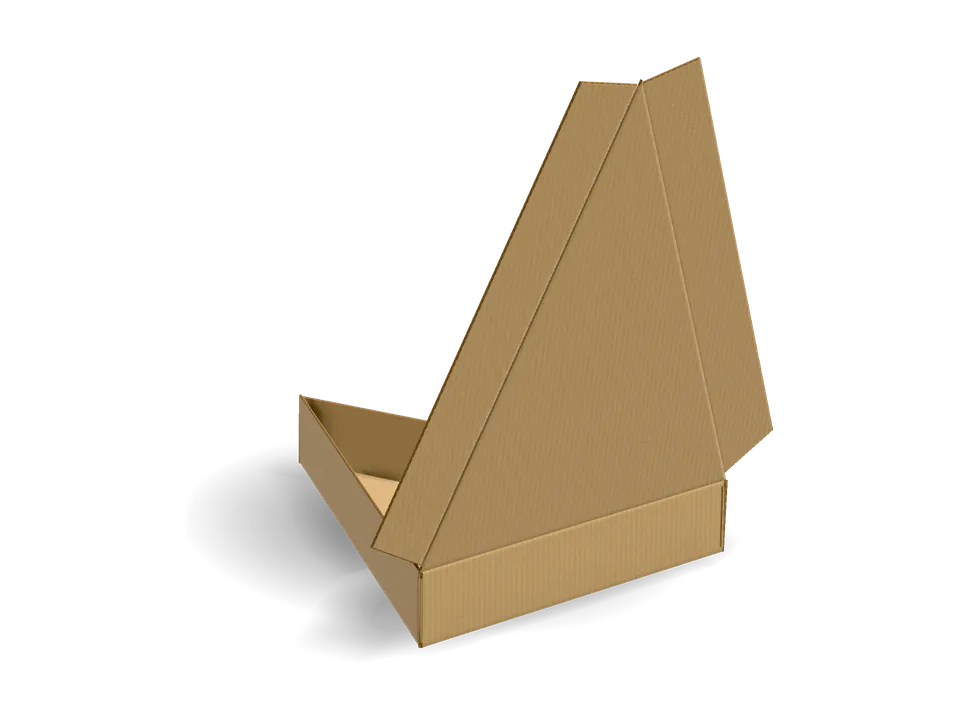

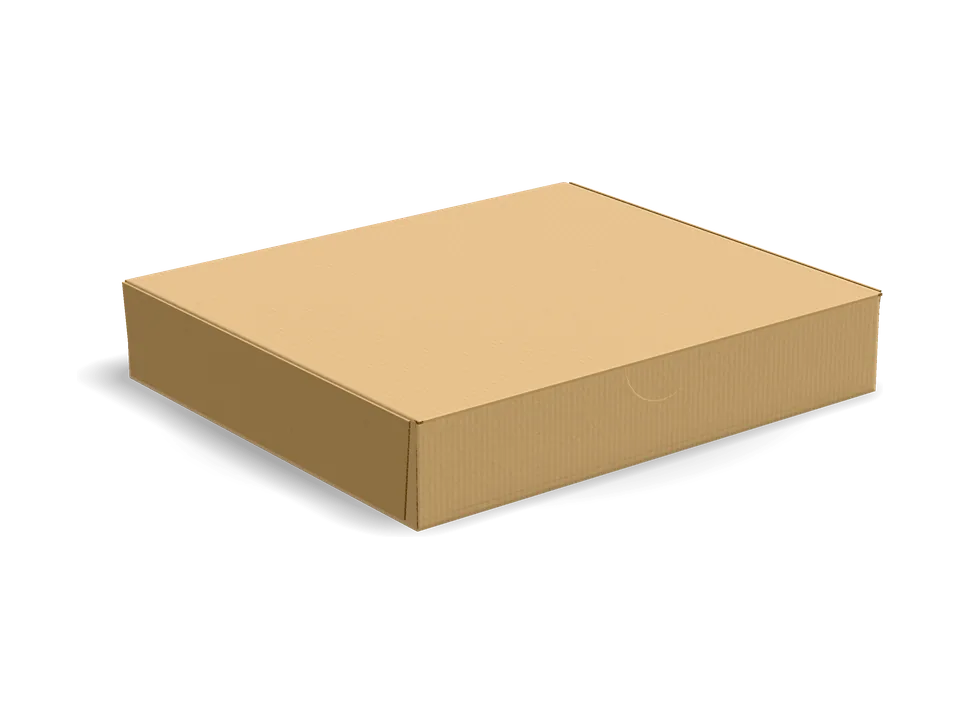

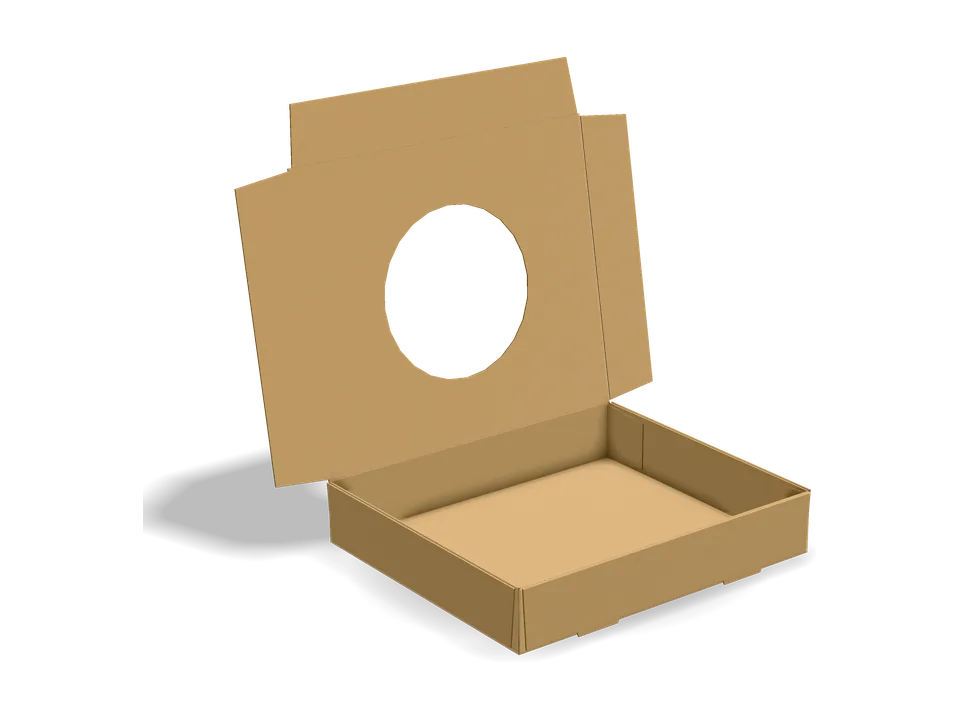

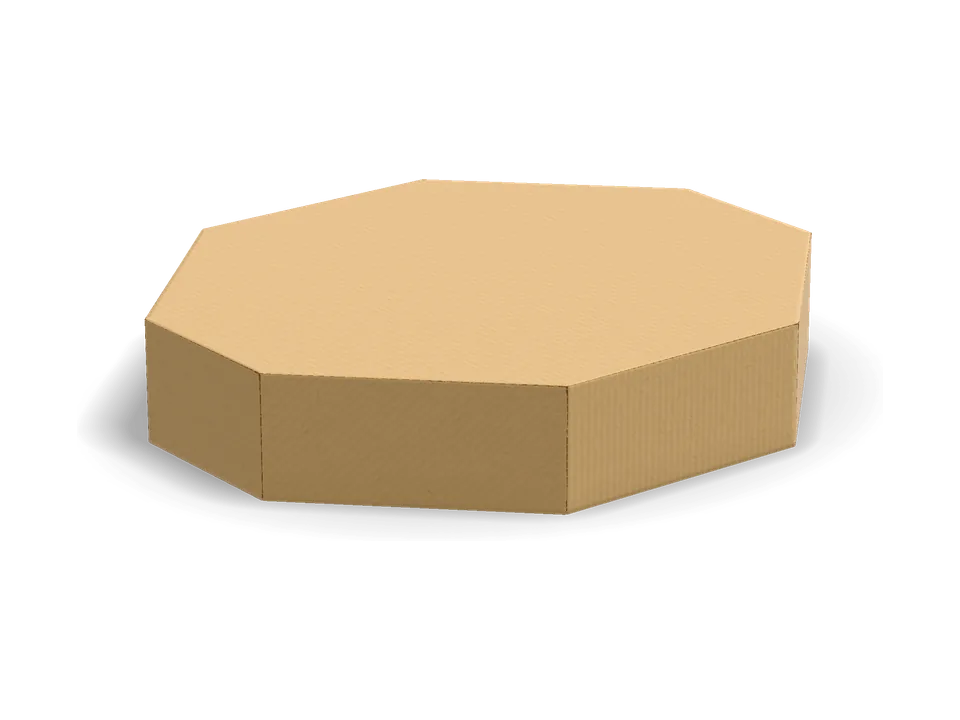

Pizza boxes

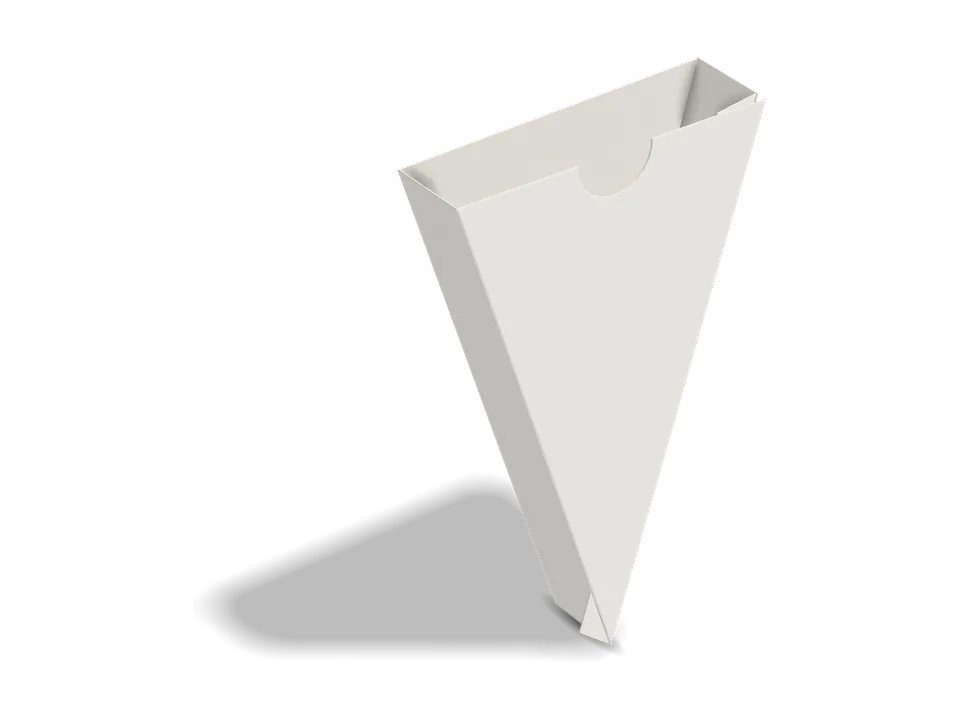

Micro-flute and paperboard · square and shaped boxes, slices, cones and trays
Pizza box
Attached lid, rolled front with two locking tabs, ears tucked into the side walls, thumb hole. Micro-flute board. Based on three reference dielines (215 to 290 mm).
Dieline shown at 290 × 290 × 47 mm (inside). Enter your own dimensions in the editor.
Pizza box with locking front
Attached lid with flaps and tuck flap, sides rolled inward, corner ears, double front whose two tabs lock into the bottom. Square or rectangular, micro-flute board. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 258.5 × 53.5 mm (inside). Enter your own dimensions in the editor.
Pizza box with window
The pizza box with locking front, with a round window in the lid to show the pizza. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 258.5 × 53.5 mm (inside). Enter your own dimensions in the editor.
Pizza box with finger notch
Rolled sides, single front with a finger notch in the middle to open the lid with one finger. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 258.5 × 53.5 mm (inside). Enter your own dimensions in the editor.
Pizza box with locking lid
Walls glued with corner flaps, hinged lid whose tuck flap locks with two tabs into slots in the bottom; finger notch on the front. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 258.5 × 53.5 mm (inside). Enter your own dimensions in the editor.
Pizza box with cut corners
Square bottom with all four corners cut off, glued walls, matching lid with flaps and tuck flap. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 258.5 × 53.5 mm (inside). Enter your own dimensions in the editor.
Pizza box with cut front corners
Square back corners, cut front corners: the box is easier to pick up and open. Matching lid. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 258.5 × 53.5 mm (inside). Enter your own dimensions in the editor.
Octagonal pizza box
Eight equal sides, as close as possible to a round pizza: less board than a square box. Matching lid with flaps. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 258.5 × 53.5 mm (inside). Enter your own dimensions in the editor.
Hexagonal pizza box
Six sides, width equal to 0.866 times the length (regular hexagon). Matching lid with flaps. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 258.308 × 53.5 mm (inside). Enter your own dimensions in the editor.
Pizza slice box
Triangular 1/8 slice bottom (45° tip), glued walls, triangular lid with tucked flaps. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 198.5 × 239.921 × 38.5 mm (inside). Enter your own dimensions in the editor.
Slice box with locking tabs
The pizza slice box in paperboard, with a lid locked by tabs into slots in the bottom. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 240.921 × 39.5 mm (inside). Enter your own dimensions in the editor.
Triangular window box
Equilateral triangle, lid with a triangular window, closed by a center tab. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 228.5 × 197.686 × 48.5 mm (inside). Enter your own dimensions in the editor.
Pizza slice cone
Triangular gusseted sleeve, open at the top, with a finger notch: the slice is eaten by hand. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 109.5 × 29.5 × 175.5 mm (inside). Enter your own dimensions in the editor.
Pizza slice tray
Open triangular tray with low edges and glued corner flaps: for serving a slice. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 240.921 × 24.5 mm (inside). Enter your own dimensions in the editor.
Burger boxes
Burger box with tuck tab
Clamshell with attached lid, flared walls, slotted tab that locks onto the lid's tab.
Dieline shown at 110 × 110 × 70 mm (inside). Enter your own dimensions in the editor.
Burger box with locking tabs
Clamshell with attached lid and rounded ears; the front of the base hooks into the sides of the lid with two tabs.
Dieline shown at 120 × 120 × 80 mm (inside). Enter your own dimensions in the editor.
Boxes with handles
Kids' meal box
Gable box with handle: two-sided roof, eared handles, locking bottom, window on the back.
Dieline shown at 260 × 160 × 160 mm (inside). Enter your own dimensions in the editor.
Drawer boxes
Drawer box
Tray with double ends and a sleeve that slides over it: individual tiramisu, sweets, gift sets. Based on our workshop's dieline.
Dieline shown at 120 × 80 × 50 mm (inside). Enter your own dimensions in the editor.
Gift drawer box
Tray with double walls (2 cm rim) and a glued sleeve: gift sets, chocolates, accessories.
Dieline shown at 300 × 200 × 60 mm (inside). Enter your own dimensions in the editor.
Meal drawer box
Tray with double ends and a sleeve with pre-cut flaps: takeout meals, sushi, desserts.
Dieline shown at 200 × 100 × 50 mm (inside). Enter your own dimensions in the editor.
Drawer box with flap tray
Sleeve and drawer whose tray opens into flaps cut in a cross. Based on three Pacdora dielines.
Dieline shown at 119.4 × 59.4 × 158.9 mm (inside). Enter your own dimensions in the editor.
Yule log boxes
Yule log box
Long one-piece box: bottom, back, tuck lid and end flaps. Based on our workshop's three dielines (20, 25 and 30 cm).
Dieline shown at 250 × 110 × 100 mm (inside). Enter your own dimensions in the editor.
Two-piece boxes (lid and base)
Gift box with lid
Separate base and lid, each with double walls and rounded corner flaps, no glue. The lid fits over the base.
Dieline shown at 150 × 150 × 40 mm (inside). Enter your own dimensions in the editor.
Boxes with carry handles
Cake box with handle
Auto-lock bottom that sets up in one move, two slotted gables and a handle made of two half-rings that pass through them: carried without a bag.
Dieline shown at 120 × 100 × 80 mm (inside). Enter your own dimensions in the editor.
Fries holders and cones
Fries holder
Scoop with a rounded front and gusseted bottom, delivered flat; notched back, flared sides.
Dieline shown at 120 × 50 × 140 mm (inside). Enter your own dimensions in the editor.
Hot dog tray
Flared walls, ears hooked into the sides: no glue needed for assembly.
Dieline shown at 159.5 × 79.5 × 29.5 mm (inside). Enter your own dimensions in the editor.
4-cup carrier
Four cup holes and a center handle, in micro-flute board: takeout drinks.
Dieline shown at 198.5 × 198.5 × 98.5 mm (inside). Enter your own dimensions in the editor.
2-bottle carrier
Basket with two bottle slots and a center handle. Based on three Pacdora dielines.
Dieline shown at 200.5 × 99.5 × 151 mm (inside). Enter your own dimensions in the editor.
Mailer boxes
Paperboard · attached lid, rolled sides
Cosmetics mailer box
Paperboard mailer box with attached lid: rolled sides with locking tabs, tucked-in dust flaps, front tuck flap with rounded ears. Skincare sets, subscription boxes. Based on two reference dielines.
Dieline shown at 295.4 × 299.4 × 69.4 mm (inside). Enter your own dimensions in the editor.
Mailer box with sleeve
Mailer box with rolled walls and attached lid, presented in a sleeve. Based on three Pacdora dielines.
Dieline shown at 295.4 × 199.4 × 59.4 mm (inside). Enter your own dimensions in the editor.
Book mailer
A base, four walls as deep as the book and two butting flaps: a flat pack sealed with tape. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 279.5 × 179.5 × 69.5 mm (inside). Enter your own dimensions in the editor.
Hinged-lid boxes
Paperboard · attached hinged lid, locking or self-locking
Long hinged-lid carton
Square-section carton that opens along its full length, front tuck flap and end flaps. Based on three Pacdora dielines.
Dieline shown at 250 × 50 × 50 mm (inside). Enter your own dimensions in the editor.
Hinged box with rectangular insert
Hinged-lid box with an inner tray die-cut with a rectangular cavity to hold the product. Based on three Pacdora dielines.
Dieline shown at 298 × 200 × 60 mm (inside). Enter your own dimensions in the editor.
Tray box with end inserts
Hinged-lid box with a long locking tuck flap and double inserts at both ends. Based on three Pacdora dielines.
Dieline shown at 150 × 100 × 100 mm (inside). Enter your own dimensions in the editor.
Magnetic-style hinged box
Flat hinged-lid box, finger notch on the front, gusseted corners. Based on three Pacdora dielines.
Dieline shown at 200.1 × 100.4 × 49.95 mm (inside). Enter your own dimensions in the editor.
Adhesive-seal box
Tray with flared walls and hinged lid, closed with an adhesive strip. Based on three Pacdora dielines.
Dieline shown at 148.4 × 99.4 × 49.4 mm (inside). Enter your own dimensions in the editor.
Box with diagonal corner locks
Tray with flared walls, diagonally locked corners and a tuck lid. Based on three Pacdora dielines.
Dieline shown at 151 × 100 × 60 mm (inside). Enter your own dimensions in the editor.
Box with front tuck flap
Large flat hinged-lid box with side flaps and a closing tuck flap on the front. Based on three Pacdora dielines.
Dieline shown at 378.4 × 289.4 × 56.7 mm (inside). Enter your own dimensions in the editor.
Box with three double walls
Hinged-lid box whose front and two sides are doubled and locked. Based on three Pacdora dielines.
Dieline shown at 285 × 191.5 × 58 mm (inside). Enter your own dimensions in the editor.
Tray with self-locking lid
Flapped box whose top flaps cross over and lock themselves, no glue or tape. Based on three Pacdora dielines.
Dieline shown at 300 × 200 × 100 mm (inside). Enter your own dimensions in the editor.
Gable boxes with handles
Paperboard · gabled roof and handle, with or without a window
Gable box with window
Box with a two-sided roof and cut-out handle, window on the large panel. Based on three Pacdora dielines.
Dieline shown at 299.4 × 149.4 × 179.4 mm (inside). Enter your own dimensions in the editor.
Gable box with handle
Low box with a central cut-out handle, eared gables and an auto-lock bottom. Based on three Pacdora dielines.
Dieline shown at 159.4 × 99.4 × 59.4 mm (inside). Enter your own dimensions in the editor.
Displays
Paperboard, micro-flute and corrugated · counter, shelf and floor displays
Hanging window display box
Window box with a punched hang tab, for retail peg hooks. Based on three Pacdora dielines.
Dieline shown at 119.4 × 39.4 × 178.4 mm (inside). Enter your own dimensions in the editor.
6-bottle display
Tray with six bottle slots and an advertising header, for shelf sales. Based on three Pacdora dielines.
Dieline shown at 248.5 × 150.5 × 60.5 mm (inside). Enter your own dimensions in the editor.
Auto-lock bottom display
Display box that opens into a showcase, auto-lock bottom with no glue at setup. Based on three Pacdora dielines.
Dieline shown at 199.4 × 149.4 × 98.9 mm (inside). Enter your own dimensions in the editor.
Open-front display
Counter display with a cut-away front and tall back, for loose products. Based on three Pacdora dielines.
Dieline shown at 119.5 × 59.5 × 159.5 mm (inside). Enter your own dimensions in the editor.
Display tray
Presentation tray with raised edges, assembled without glue. Based on three Pacdora dielines.
Dieline shown at 300 × 200 × 60 mm (inside). Enter your own dimensions in the editor.
Snap-lock bottom display
Display box with a 1-2-3 bottom and a fold-down front. Based on three Pacdora dielines.
Dieline shown at 199.4 × 149.4 × 199.2 mm (inside). Enter your own dimensions in the editor.
Display with header
Display tray with beveled sides and an advertising header. Based on three Pacdora dielines.
Dieline shown at 300 × 200 × 200 mm (inside). Enter your own dimensions in the editor.
3-tier display
Stepped floor or counter display, three tiers. Based on three Pacdora dielines.
Dieline shown at 118.5 × 118.5 × 358.5 mm (inside). Enter your own dimensions in the editor.
Beveled display
Counter tray with a low front and beveled sides. Based on three Pacdora dielines.
Dieline shown at 300 × 200 × 100 mm (inside). Enter your own dimensions in the editor.
Hanging FEFCO 0240
Carton with flaps and a hang tab, based on the FEFCO 0240 standard. Based on three Pacdora dielines.
Dieline shown at 119.4 × 59.4 × 158.4 mm (inside). Enter your own dimensions in the editor.
FEFCO 0431 tray
Display tray with double walls, based on the FEFCO 0431 standard. Based on three Pacdora dielines.
Dieline shown at 300 × 200 × 80 mm (inside). Enter your own dimensions in the editor.
Display with front flaps
Multi-piece display with a snap-lock bottom and front flaps. Based on three Pacdora dielines.
Dieline shown at 298 × 200 × 58.5 mm (inside). Enter your own dimensions in the editor.
Sandwich display tray
Open presentation tray, bottom flaps folded underneath. Based on three Pacdora dielines.
Dieline shown at 119.4 × 69.4 × 59.7 mm (inside). Enter your own dimensions in the editor.
FEFCO 0801 display
Counter display: tall back, low double front, angled sides. Based on three Pacdora dielines.
Dieline shown at 200 × 150 × 100 mm (inside). Enter your own dimensions in the editor.
Tear-off display carton
Straight tuck end carton whose top tears off along a perforated line: the box becomes a counter display. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 74.5 × 69.5 × 139.5 mm (inside). Enter your own dimensions in the editor.
Display with lift-up lid
Closed box for transport; in store, the lid folds up at the back and becomes the display's advertising header. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Tear-away display box
Regular slotted container whose upper front and sides tear away at an angle along perforations: delivered closed, it becomes a display with beveled sides. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 217 × 297 mm (inside). Enter your own dimensions in the editor.
Beveled display with flap bottom
Counter display made from a glued tube, with beveled sides, a header and a four-flap bottom: ships flat. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 258.5 × 238.5 × 228.5 mm (inside). Enter your own dimensions in the editor.
Stackable display tray
Low-front tray with a partial top at the back: trays stack on the shelf without crushing the products. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Display with wide header
Counter tray with beveled sides and a header taller and wider than the box: the brand is visible from afar. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Display with sloped front
Tray whose front leans forward to better show the product, with a header at the back. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Display tray with handles
Shelf-ready tray: low front, full-height sides with cut-out handles for shelf stocking. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Easel-back display
Lipped base and a large back panel held up by an easel cut from the panel: poster and products on the counter. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 258.5 × 178.5 × 398.5 mm (inside). Enter your own dimensions in the editor.
Display with dividers
Beveled tray with header, split into three compartments by two separate dividers. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Display with center divider
Beveled tray with header, split into two compartments by a separate divider. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Display with cell insert
Counter tray and an insert die-cut with six cells, standing on skirts: bottles, tubes or jars held upright. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Tiered display
Beveled tray with header and a two-step insert: two rows of products visible one behind the other. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 298.5 × 198.5 × 158.5 mm (inside). Enter your own dimensions in the editor.
Two-level display
Floor display: full-height back and sides, lipped base and a separate shelf at mid-height. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 357 × 257 × 897 mm (inside). Enter your own dimensions in the editor.
Display column with shelves
Four-level floor column: base and three separate shelves, front lips. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 357 × 257 × 897 mm (inside). Enter your own dimensions in the editor.
Cabinet display
Floor display closed at the top by a roof and an upright header, three shelf levels. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 357 × 257 × 897 mm (inside). Enter your own dimensions in the editor.
Paper bags
Heavy paper and paperboard · gussets, flat bottom, die-cut or rope handles
Kraft shopping bag
Gusseted bag with flat bottom, punched inner top fold for rope handles. Based on three Pacdora dielines.
Dieline shown at 219.7 × 79.7 × 279.55 mm (inside). Enter your own dimensions in the editor.
Cup carrier with handle
Strip folded into a U: bottom with a hole for one cup, two walls with a die-cut handle. Based on three Pacdora dielines.
Dieline shown at 119.4 × 59.4 × 119.4 mm (inside). Enter your own dimensions in the editor.
Cake bag
Sloped walls that meet under a die-cut handle, pleated gussets on the sides. Based on three Pacdora dielines.
Dieline shown at 159.4 × 100 × 100 mm (inside). Enter your own dimensions in the editor.
Flat-bottom grocery bag
Gusseted bag, flapped flat bottom, inner top fold for rope handles. Based on three Pacdora dielines.
Dieline shown at 219.7 × 79.7 × 279.55 mm (inside). Enter your own dimensions in the editor.
Bag with handle and closure
Gusseted bag with a closing flap and die-cut handle. Based on three Pacdora dielines.
Dieline shown at 219.7 × 79.7 × 279.55 mm (inside). Enter your own dimensions in the editor.
Bag with rounded handles
Paperboard bag-box, flapped bottom, two rounded die-cut handles. Based on three Pacdora dielines.
Dieline shown at 119.4 × 59.4 × 119.4 mm (inside). Enter your own dimensions in the editor.
Bag with arched die-cut handle
Gusseted bag with an arched handle die-cut in the front and back. Based on three Pacdora dielines.
Dieline shown at 219.7 × 79.7 × 279.55 mm (inside). Enter your own dimensions in the editor.
Standard-bottom bag
Gusseted bag, flapped flat bottom, punched inner top fold. Based on three Pacdora dielines.
Dieline shown at 219.7 × 79.7 × 279.55 mm (inside). Enter your own dimensions in the editor.
Bag without handle
Gusseted bag with flat bottom, no handle: bulk goods, bakery, grocery. Based on three Pacdora dielines.
Dieline shown at 219.7 × 79.7 × 279.55 mm (inside). Enter your own dimensions in the editor.
Rectangular gift bag
Gusseted bag, flat bottom, top fold and die-cut handle. Based on three Pacdora dielines.
Dieline shown at 219.7 × 79.7 × 249.55 mm (inside). Enter your own dimensions in the editor.
Bag with locking cord
Paperboard gusseted bag, punched top folds and locking tabs for the cord. Based on three Pacdora dielines.
Dieline shown at 149.4 × 79.4 × 199.7 mm (inside). Enter your own dimensions in the editor.
Block-bottom coffee bag
Square flapped bottom, two-sided roof with tucked gussets, sealing strip at the top. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 129.6 × 79.6 × 189.6 mm (inside). Enter your own dimensions in the editor.
Box dividers
Paperboard or corrugated · slotted partitions, folded dividers, dividers with tabs
Accordion divider
A single strip folded in a zigzag to form compartments inside a box. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 195.5 × 99.5 × 149.5 mm (inside). Enter your own dimensions in the editor.
Bottle partition
Three dividers slotted together at mid-height: six compartments in a box (FEFCO 0933). Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 298.5 × 198.5 × 149.5 mm (inside). Enter your own dimensions in the editor.
4-cell partition
Two dividers slotted together at mid-height to split a box into four. Chamfered slots for fast assembly, 0.5 mm clearance at the ends. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
9-cell partition
Four dividers slotted into a 3 × 3 grid: jars, vials, small bottles. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
12-cell partition
4 × 3 grid: the 12-bottle or 12-jar case, each item kept apart from its neighbor. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
24-cell partition
6 × 4 grid: ampoules, tubes, small jars or sample set presentation. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
Partition with double dividers
Each divider is folded over on itself: two layers that cushion impacts between the six cells. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
Partition with end tabs
4 × 2 grid where each divider has a tab at each end: it rests against the box wall, glued or not. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
U-shaped divider
A base and two upturned dividers: the box is split into three compartments across its width. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
Divider with tabs
A single divider that splits the box in two, tabs folded against the short sides. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
15-cell partition
5 × 3 grid for vials and jars in rows, or for storing small parts. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
6-cell corrugated partition
Corrugated board dividers with wide (4 mm) slots: six bottles protected for shipping. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 297 × 297 mm (inside). Enter your own dimensions in the editor.
12-cell corrugated partition
The 4 × 3 grid in corrugated board: cases of 12 bottles, jars, canned goods. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 297 × 297 mm (inside). Enter your own dimensions in the editor.
24-cell corrugated partition
6 × 4 corrugated grid for shipping small bottles and glass jars. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 317 × 297 × 297 mm (inside). Enter your own dimensions in the editor.
T-shaped divider
One long divider and a half divider glued by its tab: three compartments. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 199.5 × 209.5 × 99.5 mm (inside). Enter your own dimensions in the editor.
Sleeves
Paperboard · open tubes that wrap a drawer, tray or box
Glued sleeve
The tube, open at both ends, that wraps a drawer, tray or box: print area on four panels. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 159.5 × 109.5 × 119.5 mm (inside). Enter your own dimensions in the editor.
Sleeve with handle
Sleeve with a cut-out handle on top, to carry the box it wraps. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 159.5 × 109.5 × 119.5 mm (inside). Enter your own dimensions in the editor.
Closed-end sleeve
Sleeve closed at one end by a tuck flap and two dust flaps: the box slides in from the other end. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 159.5 × 109.5 × 119.5 mm (inside). Enter your own dimensions in the editor.
Sleeve with locking tab
Glue-free sleeve: the last panel folds under the face and its tab goes through a slot. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 159.5 × 109.5 × 119.5 mm (inside). Enter your own dimensions in the editor.
Pillow boxes
Paperboard · pillow boxes with lens-shaped ends: glued or tab-locked, deep, window, hang tab, handle
Pillow box
One-piece pillow box: two curved shells and lens-shaped ends that fold in, glue flap glued at the factory, sets up in two moves. Jewelry, soaps, samples, gifts. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 150 × 90 × 32 mm (inside). Enter your own dimensions in the editor.
Pillow box with locking tabs
The same pillow box with no glue at all: two tabs on the last panel go through two slots in the first crease. Ships flat, sets up at the counter. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 150 × 90 × 32 mm (inside). Enter your own dimensions in the editor.
Deep pillow box
Pillow box with flat gussets between the two shells: more volume for a bottle, a candle or a small pouch, still closed by its lens-shaped ends. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 160 × 100 × 50 mm (inside). Enter your own dimensions in the editor.
Deep pillow box with locking tabs
Deep gusseted version, closed without glue by two tabs through slots. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 160 × 100 × 50 mm (inside). Enter your own dimensions in the editor.
Pillow box with window
Pillow box with a window in the middle of the front shell to show the product; a film can be glued behind it. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 150 × 90 × 32 mm (inside). Enter your own dimensions in the editor.
Pillow box with hang tab
Pillow box whose top end has a punched tab for display hooks: accessories, costume jewelry, small items on the shelf. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 150 × 90 × 32 mm (inside). Enter your own dimensions in the editor.
Pillow box with handle
Both top ends extend into a die-cut handle: small take-home gift box, wedding favors, party boxes. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 160 × 100 × 35 mm (inside). Enter your own dimensions in the editor.
Inserts
Paperboard or corrugated · die-cut inserts, platforms, edge protectors
Die-cut insert with folded legs
Tray die-cut with six cells, standing on two folded-down legs: holds bottles, tubes or eggs in place inside a box. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 158 × 108 × 29.5 mm (inside). Enter your own dimensions in the editor.
Raised insert platform
Platform standing on four skirts, corner tabs folded in: it raises the product inside its box. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 299.5 × 239.5 × 79.5 mm (inside). Enter your own dimensions in the editor.
6-cell platform insert
The raised platform die-cut with six 64 mm cells: jars, candles, bottles held upright. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 299.5 × 239.5 × 79.5 mm (inside). Enter your own dimensions in the editor.
U-shaped edge protector
Flanged profile that protects an edge or corner during transport. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 399.5 × 79.5 × 39.5 mm (inside). Enter your own dimensions in the editor.
Boxes with inserts
Paperboard · box and insert supplied together (eggs, macarons, chocolates)
Egg box with insert
Box with lid and side flaps, and an insert die-cut with six cells standing on legs. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 160 × 105 × 70 mm (inside). Enter your own dimensions in the editor.
Macaron box with sleeve
Tray, die-cut cradle for six macarons and a sliding window sleeve. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 149.9 × 49.9 × 49.9 mm (inside). Enter your own dimensions in the editor.
Chocolate box with grid
Separate base and lid, grid of six interlocking strips: sixteen cells. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 160 × 160 × 30 mm (inside). Enter your own dimensions in the editor.
Wraparound packs
Paperboard · can or bottle multipacks, die-cut handles
Wraparound can or bottle pack
Band that wraps around the multipack, chamfered bottom, die-cut handles and a bottom locked by tabs. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 200 × 135 × 103.74 mm (inside). Enter your own dimensions in the editor.
Shaped boxes
Paperboard · hexagons, star: shapes that stand out on the shelf
Hexagonal box with petal closure
Hexagonal prism closed top and bottom by six interlocking petals, no glue or tuck flap. Dimensions: L = hexagon side, W = width across flats (√3 × L). Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 44.9 × 78.14 × 89.9 mm (inside). Enter your own dimensions in the editor.
Hexagonal box with auto-lock bottom
Hexagonal prism with a crash-lock bottom that sets up in one move, and a tuck lid. Dimensions: L = hexagon side, W = width across flats (√3 × L). Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 39.9 × 69.47 × 89.9 mm (inside). Enter your own dimensions in the editor.
Star gift box
Five-pointed star base and lid, walls made of a folded strip glued onto tabs. Dimensions: L = side of one point, W = diameter. Based on a FotoJock dieline, rebuilt as a parametric template.
Dieline shown at 39.72 × 119.5 × 50 mm (inside). Enter your own dimensions in the editor.
Triangular carton
Triangular-section prism, triangular top and bottom with tuck flaps. L = triangle side. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 74.5 × 74.5 × 199.5 mm (inside). Enter your own dimensions in the editor.
Hanging triangular carton
The triangular carton with a punched hang tab, for shelf display. boite.ma construction: dieline drawn by our rules, checked in 3D, to be validated by our workshop.
Dieline shown at 74.5 × 74.5 × 199.5 mm (inside). Enter your own dimensions in the editor.
Generative engine (beta)
N-sided prism box
Hexagon, triangle, octagon… 3 to 12 sides: the pattern is calculated by our generative engine (walls, bottom, tuck lid, flaps, glue flap), with no reference dieline. Prototype, to be validated.
Dieline shown at 80 × 80 × 120 mm (inside). Enter your own dimensions in the editor.
No box style or upcoming box matches your search. Try another word (carton, shipping box, bakery…) or request a box style.
By industry.
The same box styles, organized by use. Boxes without a dieline yet are on their way from our production team: request the one you need.
Bakery and pastry
14 of 15 available
Standard bakery box
Folded corners, attached lid
American cake box
10 cm high; base + lid from 23 cm
Macaron box
Die-cut cradle and sliding window sleeve
Chocolate box
Base, lid and sixteen-cell grid
Star gift box
Star-shaped base and lid; holidays, gifts
Egg box
Lid and die-cut insert on legs
Cake box with handle
Auto-lock bottom, slotted gables, built-in handle; no glue at setup
Gift box with lid
Separate base and lid, double walls; small cakes, chocolates
Gift drawer box
Double-walled drawer and sleeve; chocolates, gifts
Yule log box
Tuck lid, end flaps; 20, 25 and 30 cm
Cake tray
2 cm rolled rim
Gable box with handle
Two-sided roof, cut-out handle, with or without window
Cake bag
Sloped walls, die-cut handle
Tray cover box
Box over a tray, attached lid; 20 × 30 and 30 × 40 (two pieces)
- Layer cake boxComing soonRequest this box
Restaurants and takeout
22 of 23 available
Lunch box
Drawer and pre-cut sleeve
Kids' meal box
Box with handle, window on the back
Burger box
Clamshell with tuck tab or locking tabs
Standard pizza box
Attached lid, rolled front; locking tabs, finger notch or locking lid
Rectangular pizza box
Locking front, rectangular sizes
Pizza box with window
Round window in the lid
Shaped pizza box
Cut corners, cut front corners, octagonal, hexagonal
Pizza slice box
Triangle with lid, locking tabs or window
Slice cone and tray
Held in the hand, or served open
Sandwich box
Open presentation tray
Standard food tray
Flared walls, hinged lid; adhesive seal or locks
Takeout tray
Tall walls with handles
Meal tray
Folded corners, built-in cup holder
Cup carrier
Four cups, center handle
Bottle carrier
Two bottles with handle, or six-bottle display
Tiramisu box
Drawer and sleeve
Fries holder
Gusseted bottom, delivered flat
Can or bottle multipack
Wraparound band, die-cut handles
Coffee bag
Block bottom, two-sided roof
Takeout bag
Gussets and flat bottom; no handle, folded top or die-cut handle
Cup carrier with handle
One cup, bottom with cup hole
Hot dog holder
Flared walls, glue-free ears
- Crêpe holderComing soonRequest this box
Cosmetics and pharmacy
25 of 25 available
Standard folding carton
Reverse tuck end or straight tuck end
1-2-3 bottom carton
Snap-lock bottom, for bottles and jars
Cream jar box
1-2-3 bottom and thumb notch on the back
Ampoule carton
1-2-3 bottom and thumb notch on the back
Face cream carton
Reverse tuck end, square base
Lotion or serum carton
Tall reverse tuck end; or locking tuck with insert
Cosmetic jar carton
Compact reverse tuck end
Eyeliner and mascara carton
Very narrow reverse tuck end
Compact powder carton
Flat straight tuck end
Window display carton
Window on the back
Tear-strip carton
Tamper-evident opening
Dispenser carton
Pre-cut opening on the front: sachets, samples
Counter display
Beveled, wide header, sloped front, dividers, tiered or cell insert
Floor display
Two levels, shelf column, cabinet with header
Tear-off display carton
The top tears off and the box becomes a display
Pillow box
Glued or tab-locked, deep, window, hang tab or handle
Triangular carton
Triangular prism, with or without hang tab
Gift box sleeve
Glued, glue-free with locking tab, with handle or closed at one end
Gift box insert
Raised platform, cell platform, 4- to 24-cell partitions
Hexagonal box
Petal closure or auto-lock bottom
Bottle insert
Die-cut tray on legs
Carton with holding inserts
Die-cut inserts for a jar or bottle, center lock
Mailer box
Attached lid, rolled sides with locking tabs
Hinged-lid box
Magnetic-style, rectangular insert, end inserts; long carton
Gift and retail bag
Gussets, flat bottom; rope, die-cut handle, rounded handles or closure
Shipping
13 of 13 available
Regular slotted container
FEFCO 0201, four flaps top and bottom
Half slotted container
FEFCO 0200, flaps on one side only
Micro-flute product box
Double-hook 1-2-3 bottom, sets up without glue
Auto-lock bottom box
Crash-lock bottom, double lid with safety lock; opening back
Box with hinged lid
FEFCO 0212 and 0220
Flat shipping box
FEFCO 0414, 0420, 0421; double-walled box; mailer box with sleeve
Wraparound pack
FEFCO 0404, 0405, 0407, 0416
Box with self-locking flaps
No glue or tape
Partitions and dividers
FEFCO 0933 slotted partitions (6, 12 or 24 bottles, corrugated), accordion divider
Box with reinforced flaps
FEFCO 0202, 0203, 0204
Box with hand holes or easy opening
Die-cut hand holes; perforated tear strip
Shipper that turns into a display
Lid lifts into a header, top tears off at an angle, stackable or handled tray
Book mailer
Flat cross-shaped pack, butting flaps
Coming next.
Box families in the works. Each one will be published with its spec sheet, 3D model and description once it has been checked against two production dielines.
Auto-lock bottom carton
Snap-in bottom, for bottles and heavy products.
Mailer box with hinged lid
Tray with attached lid, rolled walls; FEFCO 0427 and 0429.
Window boxes and displays
Windows, display hang tabs, showcase display boxes.
Cake boxes
One- and two-piece, with built-in handle or window.
Pizza and burger
Quick-assembly food service boxes.
Missing a box style?
Send us a dieline your converter already cuts: it becomes our calibration reference, and the box style is published first for Business subscribers.
